MAX6765TTSD2+T - Analog Devices

Description: Linear Voltage Regulators Automotive Micropower Linear Regulators with Supervisor

Download MAX6765TTSD2+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

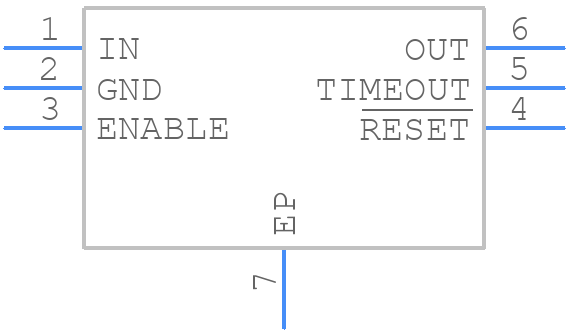

Symbol
MAX6765TTSD2+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6765TTSD2+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T633+2
click to zoom
3D Models
MAX6765TTSD2+T - Analog Devices - 3D model - Small Outline No-lead - T633+2
click to zoom

MAX6765TTSD2+T Details

  • Manufacturer Part Number:

    MAX6765TTSD2+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-LFCSP-3X3X0.75

  • Package Description:

    TDFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-11-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    RESET THRESHOLD VOLTAGE IS 2.888V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.055 mA

  • Supply Voltage-Max (Vsup):

    72 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.888V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX6765TTSD2+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6765TTSD2+T involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing high-frequency signals near the device.
  • To ensure proper power-up and initialization, the MAX6765TTSD2+T requires a power-on reset (POR) circuit to ensure that the device is properly reset during power-up. Additionally, the device requires a stable input voltage and a clock signal to operate correctly.
  • The MAX6765TTSD2+T has a maximum junction temperature of 150°C. To ensure it doesn't overheat, it's recommended to provide adequate heat sinking, use a thermal pad or heat sink, and ensure good airflow around the device. Additionally, it's recommended to monitor the device's temperature and take corrective action if it exceeds the maximum rating.
  • To troubleshoot issues with the MAX6765TTSD2+T, it's recommended to use a logic analyzer or oscilloscope to monitor the device's signals and verify that they are correct. Additionally, it's recommended to check the device's power supply, clock signal, and input/output signals to ensure they are within the recommended specifications.
  • The MAX6765TTSD2+T is a high-frequency device and requires proper EMI/EMC design considerations to ensure it meets regulations. It's recommended to use a shielded enclosure, keep the device away from antennas and other EMI-sensitive components, and use EMI filters or shielding on the device's inputs and outputs.
