MAX6771TALD2+T - Analog Devices

Description: Automotive Micropower Linear Regulators with Supervisor

Download MAX6771TALD2+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

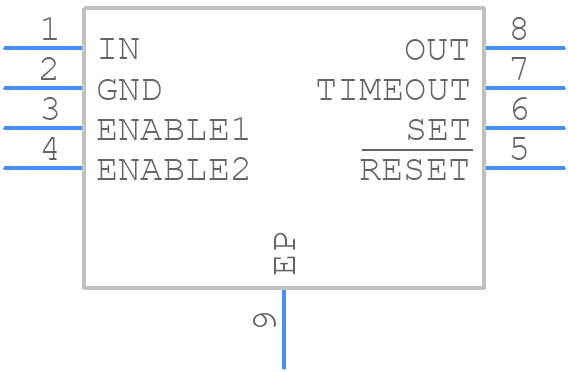

MAX6771TALD2+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6771TALD2+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833+2
click to zoom
3D Models
MAX6771TALD2+T - Analog Devices - 3D model - Small Outline No-lead - T833+2
click to zoom

MAX6771TALD2+T Details

  • Manufacturer Part Number:

    MAX6771TALD2+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-11-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    RESET THRESHOLD VOLTAGE IS 4.625V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.055 mA

  • Supply Voltage-Max (Vsup):

    72 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.625V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX6771TALD2+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6771TALD2+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device away from high-current carrying traces and to use a low-ESR capacitor for the output capacitor.
  • To ensure stability, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure the output capacitor has a low equivalent series resistance (ESR) and is properly decoupled from the input capacitor. Also, avoid using capacitors with high inductance or resistance, as they can cause oscillations.
  • The maximum input voltage that the MAX6771TALD2+T can handle is 5.5V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage is within the recommended operating range to ensure reliable operation.
  • The MAX6771TALD2+T is rated for operation up to 125°C. However, it's essential to consider the derating of the device's performance and reliability at high temperatures. It's recommended to consult the datasheet and application notes for guidance on using the device in high-temperature environments.
  • To troubleshoot issues with the MAX6771TALD2+T, start by verifying the input voltage and current, and ensuring that the device is properly connected and configured. Check the output voltage and current, and verify that the capacitors are properly sized and connected. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
