MAX707ESA+ - Analog Devices

Description: MAX707ESA+, Voltage Supervisor 4.5 → 4.75 V Active High, Active Low, Push-Pull, reset 8-Pin SOIC

Download MAX707ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

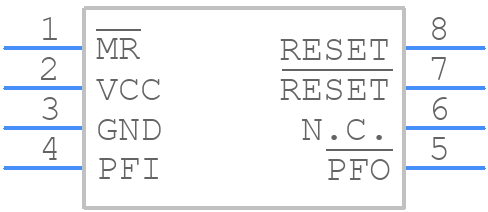

Symbol
MAX707ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX707ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+2
click to zoom
3D Models
MAX707ESA+ - Analog Devices - 3D model - Small Outline Packages - S8+2
click to zoom

MAX707ESA+ Details

  • Manufacturer Part Number:

    MAX707ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    LEAD FREE, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX707ESA+ Frequently Asked Questions (FAQs)

  • The MAX707ESA+ is a sensitive device and requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and EMI.
  • The MAX707ESA+ has a specific power-up sequence requirement to ensure proper operation. It is recommended to power up the device in the following sequence: VCC, then VREF, and finally the input signal. This sequence helps to prevent latch-up and ensures that the device starts up in a stable state.
  • The maximum input signal amplitude that the MAX707ESA+ can handle is dependent on the supply voltage and the input impedance. According to the datasheet, the maximum input signal amplitude is typically 5Vp-p, but it can be as high as 10Vp-p with a reduced input impedance. However, it is recommended to consult with Analog Devices Inc. or a qualified engineer to determine the maximum input signal amplitude for a specific application.
  • Troubleshooting issues with the MAX707ESA+ can be challenging, but there are some common steps that can be taken. First, verify that the power-up sequence is correct and that the input signal is within the recommended amplitude range. Next, check for noise and EMI issues by using a scope or spectrum analyzer to measure the input and output signals. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs, or contact Analog Devices Inc. or a qualified engineer for further assistance.
  • The MAX707ESA+ is rated for operation up to 125°C, but it is recommended to derate the device for high-temperature operation. Consult the datasheet and application notes for guidance on derating the device, and consider using thermal management techniques such as heat sinks or thermal interfaces to reduce the device temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX707ESA+ Overview

Use the download button to access the MAX707ESA+ schematic symbol, PCB footprint, and 3D model.
