MAX745EAP+T - Analog Devices

Description: Battery Management Switch-Mode Lithium-Ion Battery-Charger

Download MAX745EAP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

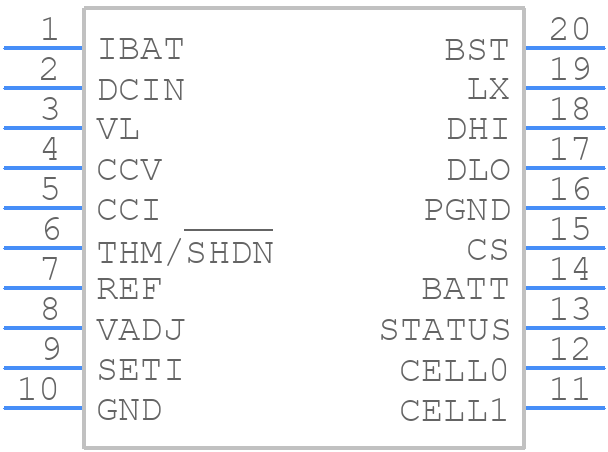

MAX745EAP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX745EAP+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 20 SSOP
click to zoom
3D Models
MAX745EAP+T - Analog Devices - 3D model - Small Outline Packages - MAX 20 SSOP
click to zoom

MAX745EAP+T Details

  • Manufacturer Part Number:

    MAX745EAP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Package Description:

    SSOP, SSOP20,.3

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-01-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.99 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +8.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX745EAP+T Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX745EAP+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also important to keep the input and output traces away from each other to minimize crosstalk.
  • To optimize the performance of the MAX745EAP+T, you should consider factors such as the input signal frequency, amplitude, and impedance, as well as the output load and impedance. You may need to adjust the gain, bandwidth, and output stage configuration to achieve the best performance in your specific application.
  • The MAX745EAP+T has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for reliable operation. You should ensure good thermal conduction between the device and the PCB, and consider using thermal vias or a heat sink if necessary.
  • To troubleshoot common issues with the MAX745EAP+T, you should check the power supply voltage, input signal integrity, and output load impedance. You may also need to verify the device configuration, gain setting, and bandwidth. In some cases, you may need to add additional components, such as capacitors or resistors, to stabilize the device.
  • The MAX745EAP+T has built-in ESD protection, but it's still important to handle the device with care to prevent damage. You should use an anti-static wrist strap or mat, and avoid touching the device pins or exposed internal components. You should also follow proper PCB handling and storage procedures to prevent ESD damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX745EAP+T Overview

Use the download button to access the MAX745EAP+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX74, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
