MAX77642ANA+ - Analog Devices

Description: Power Management Specialized - PMIC Ultra-Low Power PMIC Featuring Single- Inductor, 3-Output Buck-Boost, 2-LDOs

Download MAX77642ANA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

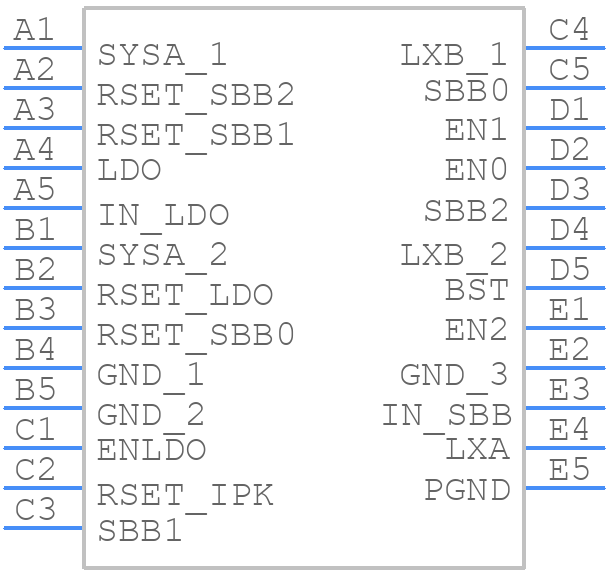

MAX77642ANA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77642ANA+ - Analog Devices PCB footprint - BGA - BGA - 21-100480
click to zoom
3D Models
MAX77642ANA+ - Analog Devices - 3D model - BGA - 21-100480
click to zoom

MAX77642ANA+ Details

  • Manufacturer Part Number:

    MAX77642ANA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    25-WLCSP-N/A

  • Package Description:

    WLP-25

  • Pin Count:

    25

  • Manufacturer Package Code:

    25-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-10-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XBGA-B25

  • Length:

    2.058 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA25,5X5,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    2.6

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.058 mm

MAX77642ANA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX77642ANA+ can be found in the MAX77642 Evaluation Kit (EV Kit) documentation and layout files, which provide a reference design for optimal performance and thermal management.
  • The power-up sequence for the MAX77642ANA+ should follow the recommended power-up sequence in the datasheet, which involves powering up the input voltage (VIN) first, followed by the enable pin (EN), and then the output voltage (VOUT). Additionally, the power-up sequence should be controlled by a dedicated power management IC or a microcontroller to ensure a smooth and reliable startup.
  • The maximum input voltage that the MAX77642ANA+ can handle is 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 3.5V to 5V for optimal performance and reliability.
  • To troubleshoot issues with the MAX77642ANA+ output voltage regulation, check the input voltage, output voltage, and enable pin (EN) status using an oscilloscope or a multimeter. Also, verify that the output capacitor and input capacitor values meet the recommended specifications in the datasheet. If the issue persists, consult the MAX77642ANA+ application note and the Analog Devices support team for further assistance.
  • The MAX77642ANA+ is rated for operation up to 85°C (junction temperature), but it's recommended to operate the device within a temperature range of -40°C to 70°C for optimal performance and reliability. For high-temperature applications, consider using a heat sink or a thermal management solution to keep the device temperature within the recommended range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX77642ANA+ Overview

Use the download button to access the MAX77642ANA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX77, or try a keyword search, such as Power Management Circuits
