MAX77675AEWE+ - Analog Devices

Description: 4x Buck/Buck-Boost/Boost Regulators, 1x Inductor 2.5V to 5.5V Input Voltage Range0.5V to 5.5V Output Voltage Range 700mA Total Output Current (3.7VIN, 1.8VOUT) SIMO Up to 90% Efficiency6.9μA Typical IQ with Two Outputs Enabled in Low-Power Mode I2C Interface and Dedicated Enable Pin Flexible Power Sequencer (FPS) 1.99mm x 1.99mm, 16-Bump, 0.5mm Pitch Wafer-Level Package (WLP)

Download MAX77675AEWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

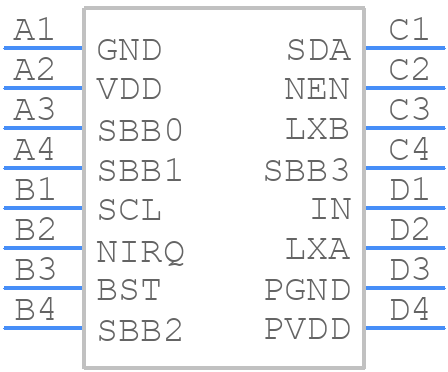

Symbol
MAX77675AEWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77675AEWE+ - Analog Devices PCB footprint - BGA - BGA - MAX77675AEWE+-
click to zoom
3D Models
MAX77675AEWE+ - Analog Devices - 3D model - BGA - MAX77675AEWE+-
click to zoom

MAX77675AEWE+ Details

  • Manufacturer Part Number:

    MAX77675AEWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-WLCSP-N/A

  • Package Description:

    WLP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-03-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XBGA-B16

  • Length:

    1.988 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.988 mm

MAX77675AEWE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX77675AEWE+ can be found in the MAX77675AEWE+ Evaluation Kit User Guide (UG-1143) and the MAX77675AEWE+ Layout Guidelines document, both available on the Analog Devices website. These resources provide detailed guidance on component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The MAX77675AEWE+ can be configured using the MAX77675AEWE+ Evaluation Kit and the accompanying software tools, such as the MAX77675AEWE+ GUI and the MAX77675AEWE+ Register Map document. These tools allow you to adjust settings, monitor performance, and optimize the device for your specific application.
  • The MAX77675AEWE+ has a maximum junction temperature of 125°C. To ensure reliable operation, it is essential to provide adequate thermal management, such as heat sinking, thermal vias, and airflow. The MAX77675AEWE+ Thermal Management document provides detailed guidance on thermal design and layout considerations.
  • Troubleshooting issues with the MAX77675AEWE+ can be done using the MAX77675AEWE+ Debug Guide, which provides a step-by-step approach to identifying and resolving common issues. Additionally, the MAX77675AEWE+ FAQs and Knowledge Base articles on the Analog Devices website offer solutions to frequently encountered problems.
  • The MAX77675AEWE+ is designed to meet EMI and EMC requirements, but it is still essential to follow proper design and layout practices to minimize electromagnetic interference. The MAX77675AEWE+ EMI and EMC document provides guidance on design considerations, layout techniques, and testing methods to ensure compliance with relevant standards.
