MAX77972EWX+ - Analog Devices

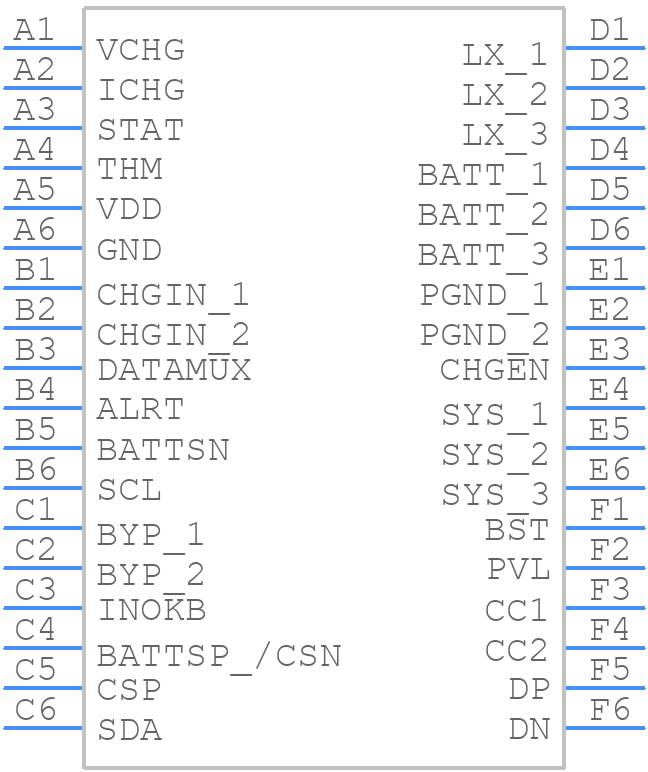

MAX77972EWX+ Details

• Manufacturer Part Number:

  MAX77972EWX+

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WLP-36

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  Cascade Function:N;CTL:Y;Integrated MOSFET:N;PS:N

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  BATTERY GAUGE

• JESD-30 Code:

  R-XBGA-B36

• Length:

  3.258 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  36

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA36,6X6,20

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.69 mm

• Supply Current-Max (Isup):

  0.09 mA

• Supply Voltage-Max (Vsup):

  4.9 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  3.6 V

• Surface Mount:

  YES

• Terminal Finish:

  Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.208 mm
