MAX8211CPA+ - Analog Devices

Description: MAX8211CPA+, Processor Supervisor Active Low, Open Drain, 8-Pin PDIP N

Download MAX8211CPA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

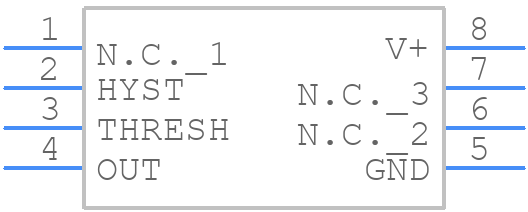

MAX8211CPA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8211CPA+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P8-1
click to zoom
3D Models
MAX8211CPA+ - Analog Devices - 3D model - Dual-In-Line Packages - P8-1
click to zoom

MAX8211CPA+ Details

  • Manufacturer Part Number:

    MAX8211CPA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-PDIP-300_MIL

  • Package Description:

    LEAD FREE, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    0.02 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX8211CPA+ Frequently Asked Questions (FAQs)

  • The MAX8211CPA+ is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and improve stability.
  • The MAX8211CPA+ requires a specific bias voltage and configuration to operate correctly. It is recommended to consult the datasheet and application notes for guidance on setting the bias voltage, selecting the correct resistors and capacitors, and configuring the device for the specific application.
  • The MAX8211CPA+ can generate heat during operation, and proper thermal management is essential to ensure reliable operation. It is recommended to follow the thermal guidelines provided in the datasheet, including using a heat sink or thermal pad, and ensuring good airflow around the device.
  • Troubleshooting issues with the MAX8211CPA+ can be challenging. It is recommended to follow a systematic approach, including checking the power supply, bias voltage, and input/output signals, and using tools such as oscilloscopes and signal generators to debug the issue.
  • Yes, the MAX8211CPA+ is a high-frequency device and can be susceptible to electromagnetic interference (EMI). It is recommended to follow good EMI/EMC design practices, including using shielding, filtering, and grounding techniques to minimize EMI and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX8211CPA+ Overview

Use the download button to access the MAX8211CPA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX82, or try a keyword search, such as Power Management Circuits
