MAX846AEEE+ - Analog Devices

Description: Maxim MAX846AEEE+, Battery Charger Lithium-Ion, NiCD, NiMH, 16-Pin QSOP

Download MAX846AEEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

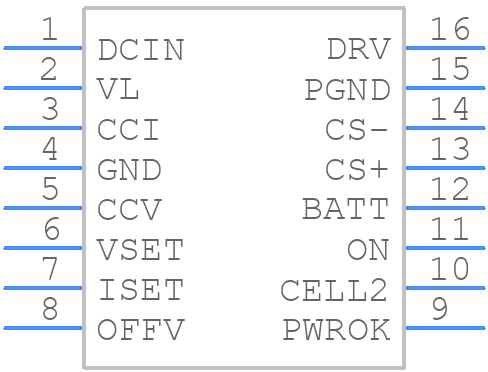

MAX846AEEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX846AEEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 16 QSOP
click to zoom
3D Models
MAX846AEEE+ - Analog Devices - 3D model - Small Outline Packages - MAX 16 QSOP
click to zoom

MAX846AEEE+ Details

  • Manufacturer Part Number:

    MAX846AEEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-09-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    3.7 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX846AEEE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX846AEEE+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 10uF to 47uF. The capacitor values and types may vary depending on the specific application and operating conditions.
  • The MAX846AEEE+ is rated for operation from -40°C to +125°C, but the maximum ambient temperature range may vary depending on the specific application and the device's power dissipation. It's recommended to consult the datasheet and perform thermal analysis to ensure the device operates within its specified temperature range.
  • Yes, the MAX846AEEE+ is a high-reliability device that meets the requirements of various automotive and industrial standards, including AEC-Q100 and IEC 60747. However, it's recommended to consult the datasheet and Analog Devices' documentation to ensure the device meets the specific requirements of your application.
  • Common issues with the MAX846AEEE+ can be troubleshooted by checking the input voltage, output load, and PCB layout. Ensure that the input voltage is within the specified range, the output load is within the recommended range, and the PCB layout is optimized for the device. Additionally, check for any signs of overheating, and consult the datasheet and application notes for troubleshooting guidelines.
