MAX8585EUA+ - Analog Devices

Description: Gate Drivers ORing MOSFET Controller

Download MAX8585EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

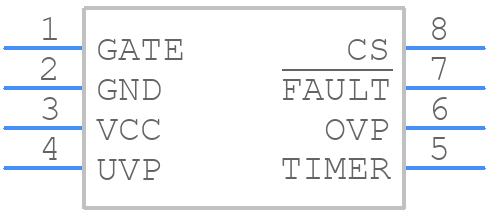

MAX8585EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8585EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0036 8Pin uMax
click to zoom
3D Models
MAX8585EUA+ - Analog Devices - 3D model - Small Outline Packages - 21-0036 8Pin uMax
click to zoom

MAX8585EUA+ Details

  • Manufacturer Part Number:

    MAX8585EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MICRO, MO-187C-AA, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-02-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    4.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX8585EUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX8585EUA+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device away from high-current carrying traces and to use a low-ESR capacitor for the output capacitor.
  • To optimize the performance of the MAX8585EUA+, you should consider factors such as the input voltage range, output voltage, and load current. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are selected based on the specific requirements of your application.
  • The MAX8585EUA+ has a thermal shutdown feature that protects the device from overheating. However, it's still important to ensure that the device is operated within its recommended operating temperature range, and that adequate heat sinking is provided. You should also consider the thermal resistance of the package and the PCB layout to ensure that the device does not overheat.
  • To troubleshoot issues with the MAX8585EUA+, you should start by checking the input voltage, output voltage, and load current to ensure that they are within the recommended operating conditions. You should also check for any signs of overheating, such as excessive temperature or thermal shutdown. Additionally, you can use a scope to check the output voltage ripple and noise, and to ensure that the device is switching correctly.
  • The MAX8585EUA+ is a switching regulator, and as such, it can generate electromagnetic interference (EMI). To minimize EMI, you should use a shielded inductor, and ensure that the device is operated within its recommended operating frequency range. You should also consider using EMI filters or shielding on the PCB to reduce radiated emissions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX8585EUA+ Overview

Use the download button to access the MAX8585EUA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX85, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
