MAX8586ETA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX8586ETA+T - Power Load Switch, USB, Current Limiter, Active High, Active Low, 5.5 V, 1.2 A, 55 mohm, TDFN-8

Download MAX8586ETA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

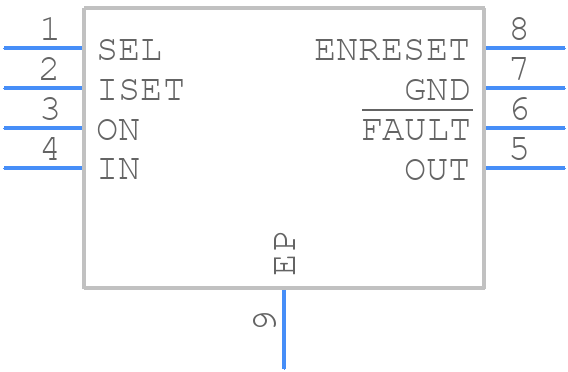

MAX8586ETA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8586ETA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833-2a
click to zoom
3D Models
MAX8586ETA+T - Analog Devices - 3D model - Small Outline No-lead - T833-2a
click to zoom

MAX8586ETA+T Details

  • Manufacturer Part Number:

    MAX8586ETA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    HVSON, SOLCC8,.12,25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-11-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB ANALOG SWITCH

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.055 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX8586ETA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8586ETA+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to reduce noise and interference.
  • The choice of input and output capacitors for the MAX8586ETA+T depends on the specific application and the desired performance. In general, low-ESR capacitors with a high ripple current rating are recommended. For the input capacitor, a value of 10uF to 22uF is typical, while for the output capacitor, a value of 22uF to 47uF is typical. It's also important to consider the voltage rating and temperature coefficient of the capacitors.
  • The MAX8586ETA+T can operate at ambient temperatures up to 125°C, but the device's performance and reliability may be affected at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • Yes, the MAX8586ETA+T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's recommended to follow the device's recommended operating conditions and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the MAX8586ETA+T, start by checking the device's input and output voltages, as well as the output current. Verify that the device is properly connected and that the input and output capacitors are properly sized and connected. Check for any signs of overheating, such as excessive temperature or thermal shutdown. If the issue persists, consult the device's datasheet and application notes, or contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX8586ETA+T Overview

Use the download button to access the MAX8586ETA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX85, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
