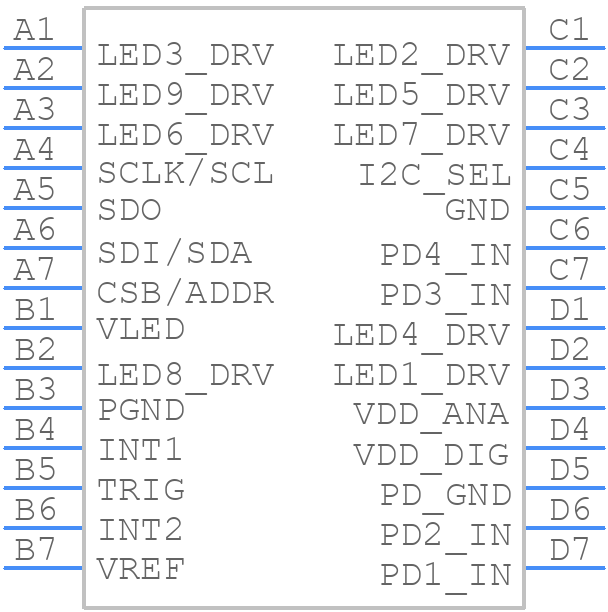

MAX86171ENI+ - Analog Devices

MAX86171ENI+ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the MAX86171ENI+?
  A good PCB layout for the MAX86171ENI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, the layout should ensure that the sensitive analog signals are not routed near the digital signals or the power supply lines.
• How do I optimize the MAX86171ENI+ for low power consumption?
  To optimize the MAX86171ENI+ for low power consumption, ensure that the device is operated in the lowest possible power mode (e.g., shutdown mode) when not in use. Also, adjust the sampling rate and resolution to the minimum required for the application. Furthermore, use the internal clock and avoid using external clocks, which can increase power consumption. Finally, consider using a low-power microcontroller and optimizing the system's power management scheme.
• What is the recommended EMI filtering for the MAX86171ENI+?
  The MAX86171ENI+ is a sensitive analog device, and proper EMI filtering is essential to ensure reliable operation. A recommended EMI filtering scheme includes using a common-mode choke (CMC) or a ferrite bead in series with the power supply lines, followed by a decoupling capacitor (e.g., 10uF) and a series resistor (e.g., 10Ω) to filter out high-frequency noise. Additionally, consider using shielding or a metal enclosure to reduce electromagnetic radiation.
• How do I troubleshoot issues with the MAX86171ENI+?
  To troubleshoot issues with the MAX86171ENI+, start by verifying the power supply voltage and ensuring that it is within the recommended range. Check the device's clock frequency and ensure that it is stable. Use an oscilloscope to verify the analog signals and check for noise or distortion. Also, review the device's configuration and settings to ensure that they are correct. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
• What is the recommended calibration procedure for the MAX86171ENI+?
  The MAX86171ENI+ requires calibration to ensure accurate measurements. A recommended calibration procedure involves applying a known input signal to the device and measuring the output. Then, adjust the device's gain and offset settings to match the expected output. Repeat this process for different input signals and temperatures to ensure that the device is calibrated across the entire operating range. Consult the datasheet and application notes for more detailed calibration procedures.
