MAX8663ETL+ - Analog Devices

Description: Maxim MAX8663ETL+, Lithium-Ion, Battery Charge Controller, 1.2A 40-Pin, TQFN

Download MAX8663ETL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

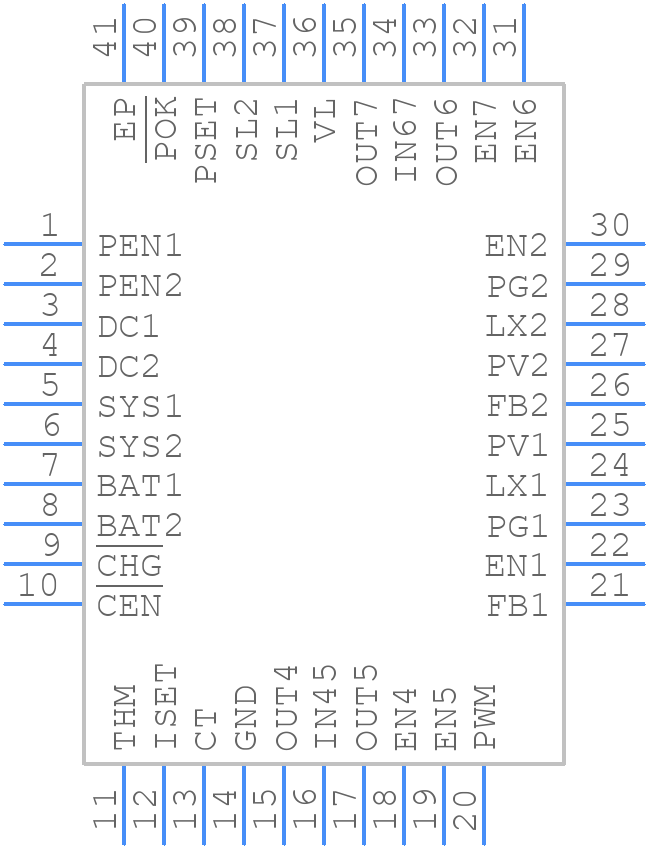

MAX8663ETL+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8663ETL+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40L Thin QFN (T4055-1)
click to zoom
3D Models
MAX8663ETL+ - Analog Devices - 3D model - Quad Flat No-Lead - 40L Thin QFN (T4055-1)
click to zoom

MAX8663ETL+ Details

  • Manufacturer Part Number:

    MAX8663ETL+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-LFCSP-5X5X0.75

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-03-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX8663ETL+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX8663ETL+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source to minimize the length of the power traces.
  • To optimize the performance of the MAX8663ETL+ in a high-temperature environment, it is recommended to use a heat sink to dissipate heat, reduce the input voltage to minimize power dissipation, and ensure good airflow around the device. Additionally, the device should be operated within its recommended operating temperature range to ensure reliable operation.
  • The maximum input voltage that can be applied to the MAX8663ETL+ is 5.5V. Exceeding this voltage can cause damage to the device. It is recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage does not exceed the maximum rating.
  • To troubleshoot issues with the MAX8663ETL+, it is recommended to check the input voltage, output voltage, and current consumption using an oscilloscope or a multimeter. Check for any signs of overheating, such as excessive temperature or burning smell. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
  • Yes, the MAX8663ETL+ can be used in a battery-powered application. However, it is recommended to use a low-dropout linear regulator (LDO) or a switching regulator with a low quiescent current to minimize power consumption and extend battery life. Additionally, the device should be operated within its recommended operating voltage range to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX8663ETL+ Overview

Use the download button to access the MAX8663ETL+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX86, or try a keyword search, such as Power Management Circuits
