MAX8677CETG+ - Analog Devices

Description: Maxim MAX8677CETG+, Battery Charger, 1500mA, 24-Pin TQFN

Download MAX8677CETG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

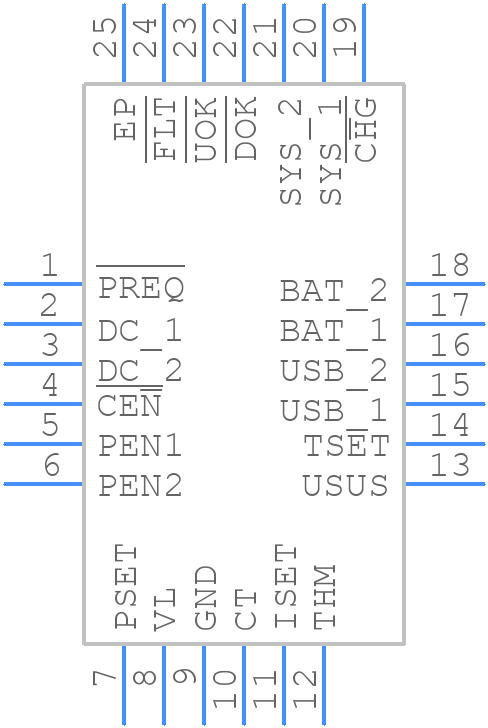

MAX8677CETG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8677CETG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444-4
click to zoom
3D Models
MAX8677CETG+ - Analog Devices - 3D model - Quad Flat No-Lead - T2444-4
click to zoom

MAX8677CETG+ Details

  • Manufacturer Part Number:

    MAX8677CETG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.80 MM HEIGHT, LEAD FREE, TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-05-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    6.6 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX8677CETG+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8677CETG+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX8677CETG+ depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The input capacitor should have a value between 1uF to 10uF, while the output capacitor should have a value between 10uF to 47uF. It's essential to consider the capacitor's ESR, ESL, and ripple current rating when making a selection.
  • The MAX8677CETG+ has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to consider the thermal management and heat dissipation in the system design to ensure the device operates within its specified temperature range.
  • The MAX8677CETG+ is a surface-mount device and can be susceptible to vibration-induced failures. However, the device's reliability can be improved by using a robust PCB design, secure component mounting, and conformal coating. Additionally, the device's solder joints should be inspected and tested to ensure they can withstand the expected vibration levels.
  • Troubleshooting issues with the MAX8677CETG+ involves a systematic approach. First, verify the device's pin connections and PCB layout. Then, check the input voltage, output voltage, and current consumption using an oscilloscope or a multimeter. Next, verify the device's operating frequency and mode. Finally, consult the datasheet and application notes for guidance on specific troubleshooting techniques and potential failure modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX8677CETG+ Overview

Use the download button to access the MAX8677CETG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX86, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
