MAX881REUB+ - Analog Devices

Description: MAX881REUB+, Charge Pump Inverting, -4.9 to -0.5V, 10-Pin, µMAX

Download MAX881REUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

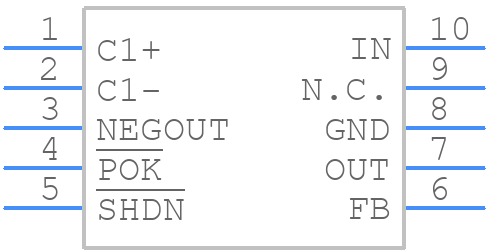

MAX881REUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX881REUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - UMAX10
click to zoom
3D Models
MAX881REUB+ - Analog Devices - 3D model - Small Outline Packages - UMAX10
click to zoom

MAX881REUB+ Details

  • Manufacturer Part Number:

    MAX881REUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR
