MAX9110EKA+T - Analog Devices

Description: LVDS Interface IC Single/Dual LVDS Line Driver with Ultra-Low Differential Skew in SOT23

Download MAX9110EKA+T Model

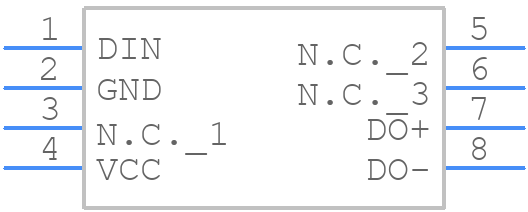

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX9110EKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - 21-00078 (8L
click to zoom
3D Models
MAX9110EKA+T - Analog Devices  - 3D model - SOT23 (8-Pin) - 21-00078 (8L
click to zoom

MAX9110EKA+T Details

  • Manufacturer Part Number:

    MAX9110EKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP, TSSOP8,.1

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-10-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.25 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    TRUE AND INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    2.5 ns

  • Width:

    1.625 mm

MAX9110EKA+T Frequently Asked Questions (FAQs)
