MAX9110ESA+ - Analog Devices

Description: LVDS Interface IC Single/Dual LVDS Line Driver with Ultra-

Download MAX9110ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

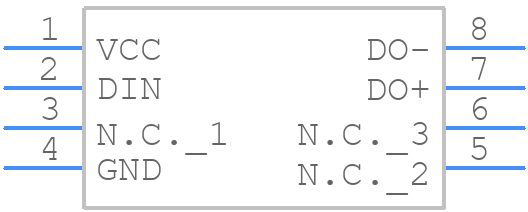

Symbol
MAX9110ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9110ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO*
click to zoom
3D Models
MAX9110ESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO*
click to zoom

MAX9110ESA+ Details

  • Manufacturer Part Number:

    MAX9110ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-10-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.25 V

  • Output Polarity:

    TRUE AND INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    2.5 ns

  • Width:

    3.9 mm

MAX9110ESA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX9110ESA+ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To optimize the performance of the MAX9110ESA+ in a noisy environment, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI). Additionally, consider using a separate analog power supply and ground plane to isolate the device from digital noise.
  • The maximum operating temperature range for the MAX9110ESA+ is -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the MAX9110ESA+ is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process, and it's qualified to meet the requirements of the Automotive Electronics Council (AEC) Q100 standard. However, it's recommended to consult with Analog Devices Inc for specific requirements and qualifications.
  • Common issues with the MAX9110ESA+ include oscillations, noise, and output voltage errors. To troubleshoot these issues, check the power supply voltage, input voltage range, and output load conditions. Also, verify that the device is properly soldered and that there are no layout or routing issues. Consult the datasheet and application notes for more detailed troubleshooting guidelines.
