MAX9113ATA/VY+ - Analog Devices

Description: Single/Dual LVDS Line Receivers with Ultra-Low Pulse Skew in SOT23

Download MAX9113ATA/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

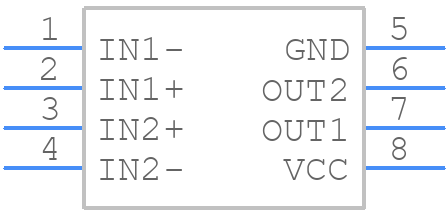

Symbol
MAX9113ATA/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9113ATA/VY+ - Analog Devices PCB footprint - Other - Other - T822CY +2
click to zoom
3D Models
MAX9113ATA/VY+ - Analog Devices - 3D model - Other - T822CY +2
click to zoom

MAX9113ATA/VY+ Details

  • Manufacturer Part Number:

    MAX9113ATA/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP_SS-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP_SS-2X2X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-07-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    2 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Receive Delay-Max:

    3.5 ns

  • Receiver Number of Bits:

    2

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MAX9113ATA/VY+ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding configuration, keeping the analog and digital grounds separate, and placing the device close to the signal source. Additionally, use a solid ground plane and avoid routing digital signals near the analog inputs.
  • The MAX9113ATA/VY+ requires a single 2.7V to 5.5V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it is recommended to power up the device after the input signals are stable.
  • The MAX9113ATA/VY+ can handle input voltages up to 6V without damage, but it is recommended to keep the input voltage within the specified range of 0V to 5.5V to ensure optimal performance and accuracy.
  • The MAX9113ATA/VY+ does not require calibration. It is a plug-and-play device, and its internal calibration is done during the manufacturing process. However, it is recommended to follow the recommended layout and placement guidelines to ensure optimal performance.
  • The typical settling time for the MAX9113ATA/VY+ is around 10µs. This settling time can affect the overall system performance, especially in high-speed applications. It is recommended to consider the settling time when designing the system and ensure that the device has sufficient time to settle before taking measurements.
