MAX9113ATA/VY+T - Analog Devices

Description: Single/Dual LVDS Line Receivers with Ultra-Low Pulse Skew in SOT23

Download MAX9113ATA/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

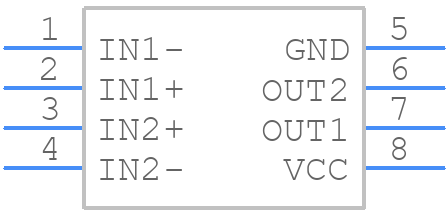

MAX9113ATA/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9113ATA/VY+T - Analog Devices PCB footprint - Other - Other - T822CY +2
click to zoom
3D Models
MAX9113ATA/VY+T - Analog Devices - 3D model - Other - T822CY +2
click to zoom

MAX9113ATA/VY+T Details

  • Manufacturer Part Number:

    MAX9113ATA/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP_SS-2X2X0.75

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP_SS-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-07-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Receive Delay-Max:

    3.5 ns

  • Receiver Number of Bits:

    2

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MAX9113ATA/VY+T Frequently Asked Questions (FAQs)

  • The MAX9113ATA/VY+T is a high-speed device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the guidelines provided in the datasheet, such as keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The MAX9113ATA/VY+T has a programmable output voltage range, and the correct range depends on the specific application requirements. The output voltage range can be set using the VSET pin, and the datasheet provides a table to help determine the correct voltage range based on the input voltage and desired output voltage. It is recommended to consult the datasheet and consider factors such as the input voltage, output current, and desired output voltage accuracy when selecting the output voltage range.
  • The MAX9113ATA/VY+T has a maximum input voltage rating of 5.5V, and it is not recommended to exceed this voltage to avoid damage to the device. However, the device can operate with input voltages as low as 2.7V, making it suitable for a wide range of applications.
  • The MAX9113ATA/VY+T is a high-gain device, and it can be prone to oscillation if not properly compensated. To ensure stability, it is recommended to follow the compensation guidelines provided in the datasheet, such as using a compensation capacitor and resistor in the feedback loop. Additionally, it is recommended to use a low-ESR output capacitor and to minimize the output capacitance to reduce the risk of oscillation.
  • The typical startup time for the MAX9113ATA/VY+T is around 100μs, but this can vary depending on the specific application and operating conditions. The startup time can be affected by factors such as the input voltage, output voltage, and load current. It is recommended to consult the datasheet and consider the specific application requirements when designing the startup circuitry.
