MAX9123EUE+ - Analog Devices

Description: Maxim MAX9123EUE+, LVDS Transmitter Quad LVCMOS/ LVTTL LVDS, 3 → 3.6 V, 16-Pin, TSSOP

Download MAX9123EUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

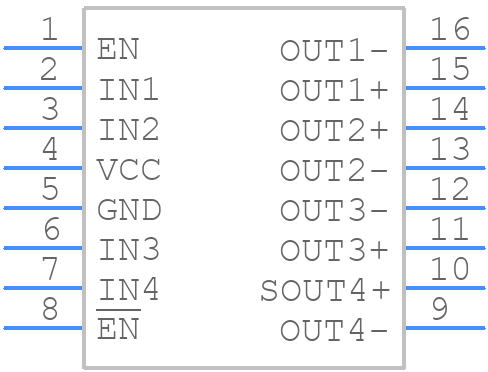

MAX9123EUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9123EUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Max TSSOP 4.40mm
click to zoom
3D Models
MAX9123EUE+ - Analog Devices - 3D model - Small Outline Packages - Max TSSOP 4.40mm
click to zoom

MAX9123EUE+ Details

  • Manufacturer Part Number:

    MAX9123EUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-02-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1.7 ns

  • Width:

    4.4 mm

MAX9123EUE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX9123EUE+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • The MAX9123EUE+ requires a proper power-up sequence to ensure correct operation. The device should be powered up with a single 3.3V or 5V supply, and the input voltage should be applied before the clock signal. The device also requires a reset pulse on the RST pin to initialize the internal registers. Refer to the datasheet for the recommended power-up sequence and reset timing.
  • The MAX9123EUE+ can support clock frequencies up to 100MHz. However, the maximum clock frequency may be limited by the specific application and the quality of the clock signal. It is recommended to consult the datasheet and application notes for more information on clock frequency limitations and jitter tolerance.
  • Optimizing the performance of the MAX9123EUE+ requires careful consideration of the device's operating conditions, PCB layout, and component selection. Factors such as input signal quality, clock jitter, and power supply noise can affect the device's performance. It is recommended to consult the application notes and datasheet for guidance on optimizing the device's performance in specific applications.
  • The MAX9123EUE+ has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within the recommended temperature range, and proper thermal management should be implemented. This includes using a heat sink or thermal pad, and ensuring good airflow around the device. Refer to the datasheet for more information on thermal considerations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9123EUE+ Overview

Use the download button to access the MAX9123EUE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX91, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
