Please enter a minimum 3 letters or numbers
Technical Content
Part Image

MAX9206EAI+T - Analog Devices

Description: 10-Bit Bus LVDS Deserializers

Download MAX9206EAI+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

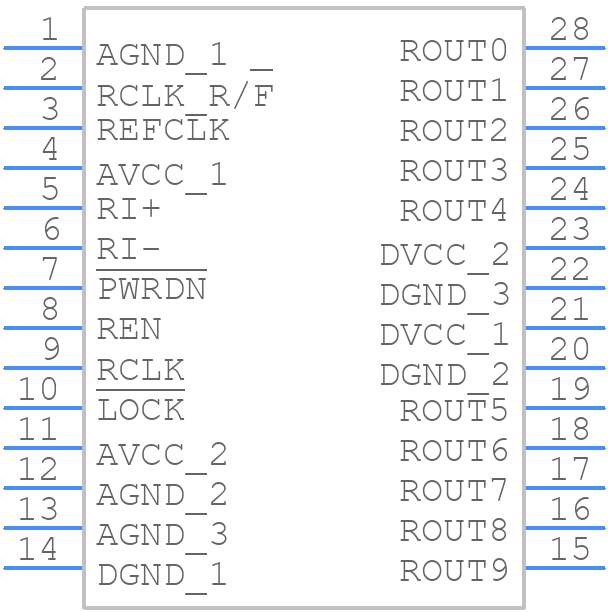

MAX9206EAI+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints

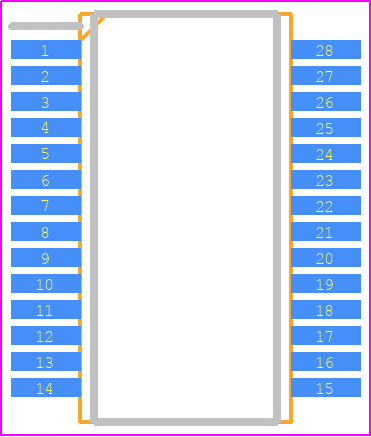

MAX9206EAI+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - A28+2
click to zoom
3D Models
MAX9206EAI+T - Analog Devices - 3D model - Small Outline Packages - A28+2
click to zoom

MAX9206EAI+T Details

  • Manufacturer Part Number:

    MAX9206EAI+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    SSOP, SSOP28,.3

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-08-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    DESERIALIZER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    10

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    75 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX9206EAI+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9206EAI+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded cable for the input signal and to keep the device away from high-current carrying traces.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input signal is within the recommended common-mode voltage range (0.5V to 3.5V) and that the output load is within the recommended range (1kΩ to 10kΩ).
  • The MAX9206EAI+T can handle input signal frequencies up to 100MHz, but the device's bandwidth and gain flatness may degrade at higher frequencies. For optimal performance, it's recommended to keep the input signal frequency below 50MHz.
  • The MAX9206EAI+T is rated for operation from -40°C to +125°C, but its performance may degrade at higher temperatures. It's recommended to derate the device's power dissipation and ensure proper heat sinking to prevent overheating.
  • Common issues with the MAX9206EAI+T can often be traced back to poor PCB layout, inadequate power supply decoupling, or incorrect input signal termination. To troubleshoot, check the PCB layout for any issues, ensure proper power supply decoupling, and verify that the input signal is properly terminated. Also, check for any signs of overheating or excessive power dissipation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9206EAI+T Overview

Use the download button to access the MAX9206EAI+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX92, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to MAX9206EAI+T

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

MAX9206EAI+T Alternates

Showing results

Image Part Number Model
Part Image MAX9206EAI Rochester Electronics LLC

LINE RECEIVER, PDSO28, 5.30 MM, 0.65 MM PITCH, SSOP-28
Part Image MAX9206EAI+ Maxim Integrated Products

DESERIALIZER, 1 Func, 10 Rcvr, CMOS, PDSO28
Part Image MAX9206EAI-T Maxim Integrated Products

DESERIALIZER, 1 Func, 10 Rcvr, CMOS, PDSO28
