MAX9218ECM+ - Analog Devices

Description: 27-Bit, 7MHz-to-35MHz DC-Balanced LVDS Deserializer

Download MAX9218ECM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

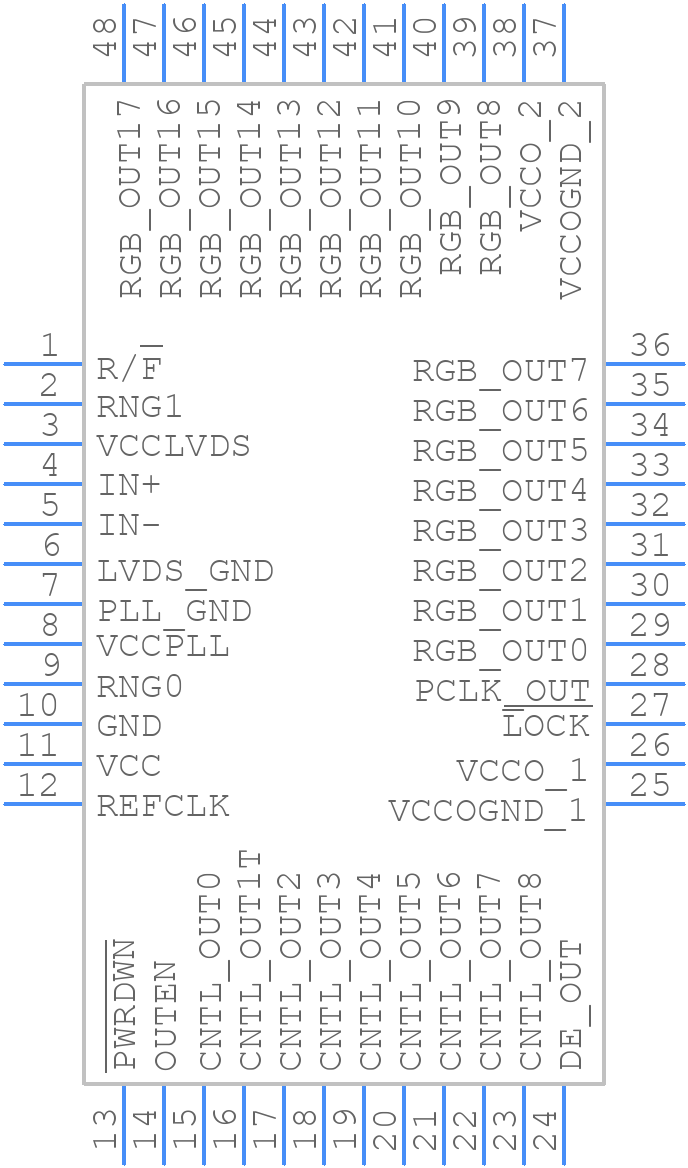

Symbol
MAX9218ECM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9218ECM+ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-LQFP-7X7X1.4_2023
click to zoom
3D Models
MAX9218ECM+ - Analog Devices - 3D model - Quad Flat Packages - 48-LQFP-7X7X1.4_2023
click to zoom

MAX9218ECM+ Details

  • Manufacturer Part Number:

    MAX9218ECM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    48-LQFP-7X7X1.4

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LQFP-7X7X1.4

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-02-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX9218ECM+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9218ECM+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals under the device.
  • The RSET resistor value depends on the desired output current and the input voltage. A good starting point is to use the formula RSET = (VIN - VOUT) / IOUT, where VIN is the input voltage, VOUT is the desired output voltage, and IOUT is the desired output current. However, it's recommended to consult the datasheet and application notes for more detailed guidance.
  • The MAX9218ECM+ can handle input voltages up to 42V, but it's recommended to limit the input voltage to 36V or less to ensure reliable operation and to prevent damage to the device.
  • The MAX9218ECM+ is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliable operation. Consult the datasheet and application notes for more detailed guidance on high-temperature operation.
  • Common issues with the MAX9218ECM+ can often be traced to poor PCB layout, incorrect component values, or inadequate input bypassing. Check the datasheet and application notes for troubleshooting guidelines, and consider using a scope or other diagnostic tools to identify the root cause of the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9218ECM+ Overview

Use the download button to access the MAX9218ECM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX92, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
