MAX9265GCM/V+ - Analog Devices

Description: HDCP Gigabit Multimedia Serial Link Serializer with LVDS System Interface

Download MAX9265GCM/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

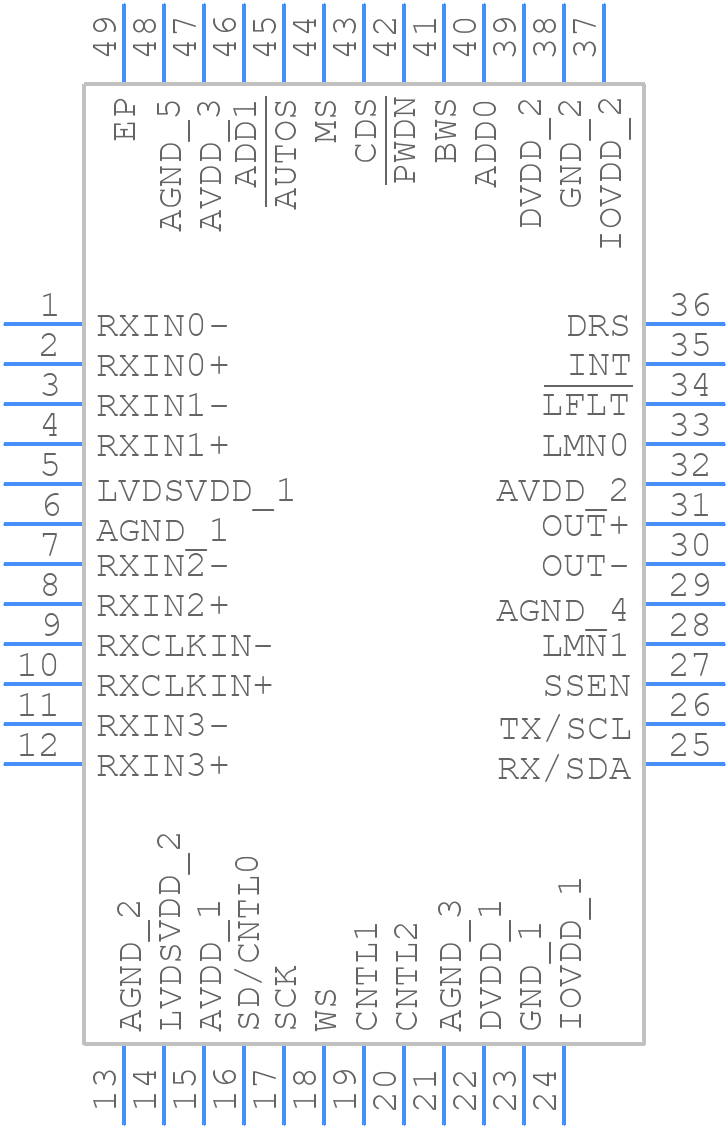

Symbol
MAX9265GCM/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9265GCM/V+ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - MAX9265GCM/V+
click to zoom
3D Models
MAX9265GCM/V+ - Analog Devices - 3D model - Quad Flat Packages - MAX9265GCM/V+
click to zoom

MAX9265GCM/V+ Details

  • Manufacturer Part Number:

    MAX9265GCM/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    48-TQFP_EP-7X7X1.0

  • Package Description:

    QFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-TQFP_EP-7X7X1.0

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2011-01-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    1

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    1.9 V

  • Supply Voltage1-Min:

    1.7 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX9265GCM/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX9265GCM/V+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane is also recommended. Refer to the MAX9265 evaluation kit for a reference design.
  • The power-up sequence for the MAX9265GCM/V+ should follow a specific order to ensure proper operation. First, power up the analog supply (VCC), followed by the digital supply (VDD), and then the clock input (CLKIN). The power-down sequence should be reversed. Refer to the datasheet for more details.
  • The MAX9265GCM/V+ supports clock frequencies up to 150MHz. However, the maximum clock frequency may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform thorough testing to ensure reliable operation.
  • The MAX9265GCM/V+ supports various deserialization modes, including 1:4, 1:8, and 1:16. The deserialization mode can be configured using the device's control pins (MODE0-MODE2) and the clock input (CLKIN). Refer to the datasheet for specific configuration details and timing diagrams.
  • The typical power consumption of the MAX9265GCM/V+ varies depending on the operating frequency, supply voltage, and deserialization mode. However, the typical power consumption is around 150mW at 100MHz clock frequency and 1.8V supply voltage. Refer to the datasheet for more detailed power consumption information.
