MAX9265GCM/V+T - Analog Devices

Description: HDCP Gigabit Multimedia Serial Link Serializer with LVDS System Interface

Download MAX9265GCM/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

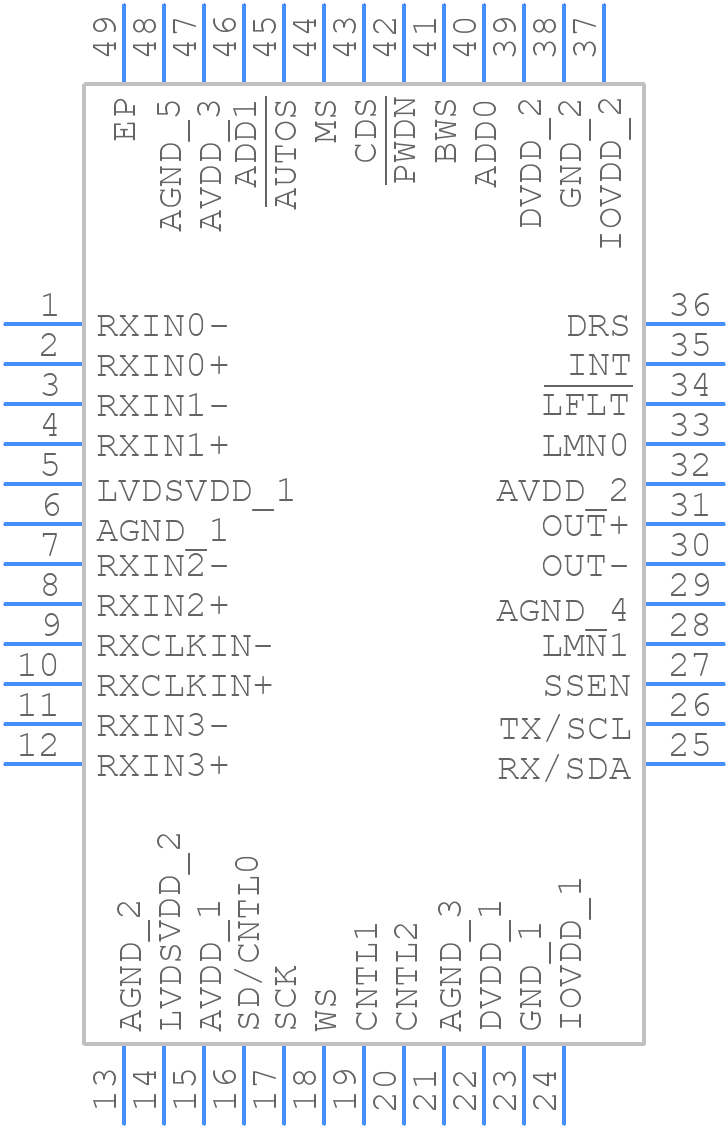

MAX9265GCM/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9265GCM/V+T - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - C48E+8
click to zoom
3D Models
MAX9265GCM/V+T - Analog Devices - 3D model - Quad Flat Packages - C48E+8
click to zoom

MAX9265GCM/V+T Details

  • Manufacturer Part Number:

    MAX9265GCM/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    48-TQFP_EP-7X7X1.0

  • Package Description:

    QFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-TQFP_EP-7X7X1.0

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2011-01-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    1

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    1.9 V

  • Supply Voltage1-Min:

    1.7 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX9265GCM/V+T Frequently Asked Questions (FAQs)
