MAX9272AGTM+ - Analog Devices

Description: 28-Bit GMSL Deserializer for Coax or STP Cable

Download MAX9272AGTM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

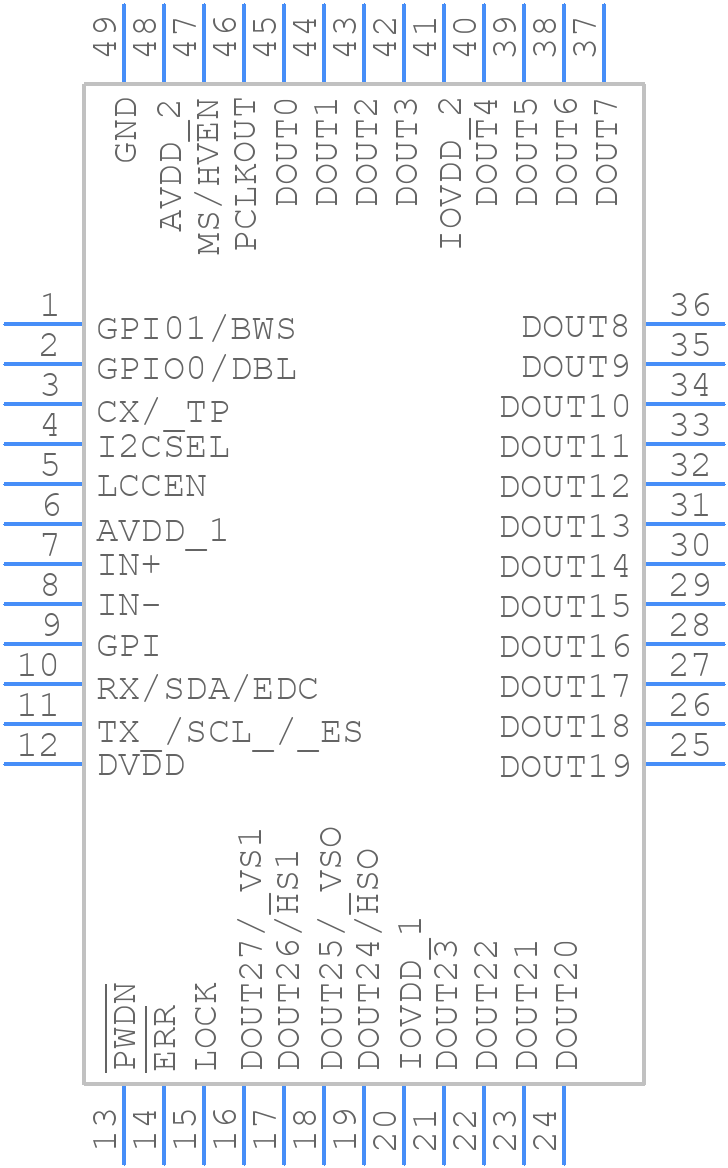

MAX9272AGTM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9272AGTM+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4877+4
click to zoom
3D Models
MAX9272AGTM+ - Analog Devices - 3D model - Quad Flat No-Lead - T4877+4
click to zoom

MAX9272AGTM+ Details

  • Manufacturer Part Number:

    MAX9272AGTM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Package Description:

    TQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2014-05-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    ISO 10605

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX9272AGTM+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX9272AGTM+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to place it as close as possible to the device.
  • To optimize the performance of the MAX9272AGTM+ in high-temperature environments, it's recommended to use a heat sink to dissipate heat, and to ensure good airflow around the device. Additionally, it's recommended to reduce the power supply voltage and to use a lower clock frequency to reduce the power consumption and heat generation.
  • The maximum cable length that can be used with the MAX9272AGTM+ depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible to minimize signal attenuation and noise. A good starting point is to use a cable length of up to 1 meter, and to use a cable with a characteristic impedance of 100 ohms.
  • To troubleshoot issues with the MAX9272AGTM+, it's recommended to use a logic analyzer or an oscilloscope to monitor the digital signals, and to check the power supply voltage and current. Additionally, it's recommended to check the device's temperature and to ensure that it's within the recommended operating range. It's also recommended to consult the device's datasheet and application notes for troubleshooting guidelines.
  • Yes, the MAX9272AGTM+ can be used in automotive applications. It's an AEC-Q100 qualified device, which means it meets the automotive industry's standards for reliability and performance. However, it's recommended to consult the device's datasheet and application notes for specific guidelines on using the device in automotive applications.
