MAX9272AGTM+T - Analog Devices

Description: 28-Bit GMSL Deserializer for Coax or STP Cable

Download MAX9272AGTM+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

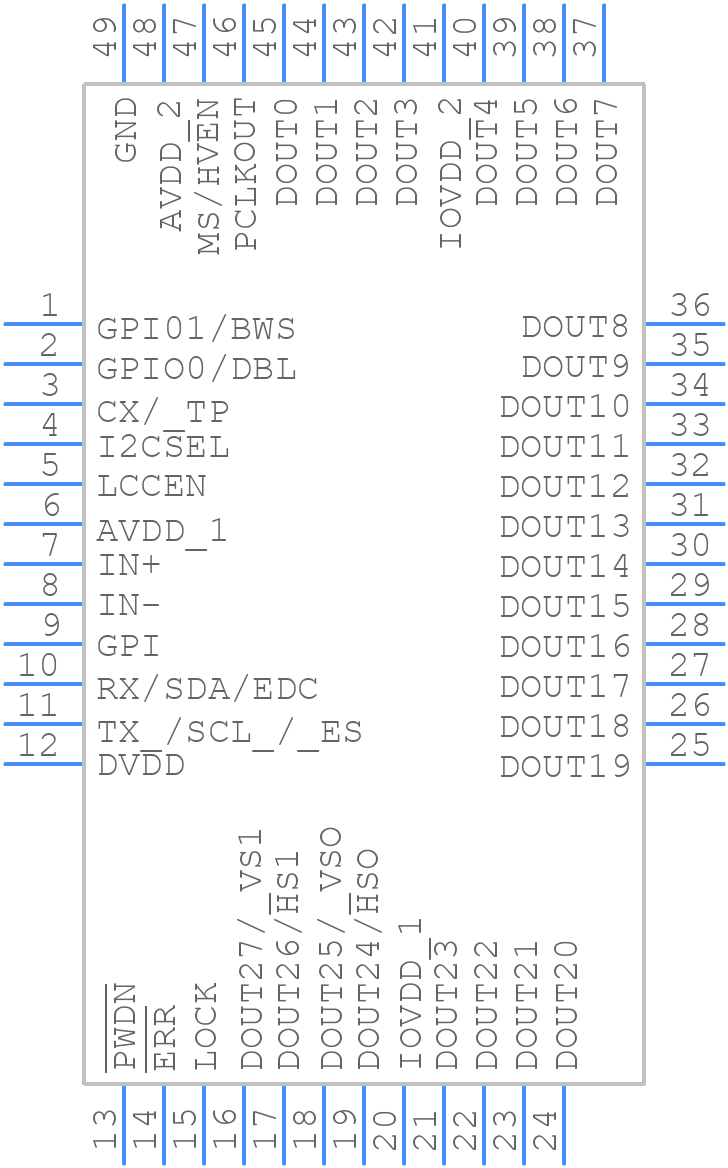

MAX9272AGTM+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9272AGTM+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4877+4
click to zoom
3D Models
MAX9272AGTM+T - Analog Devices - 3D model - Quad Flat No-Lead - T4877+4
click to zoom

MAX9272AGTM+T Details

  • Manufacturer Part Number:

    MAX9272AGTM+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Package Description:

    TQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2014-05-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    ISO 10605

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX9272AGTM+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9272AGTM+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To properly configure the MAX9272AGTM+T, you need to consider the specific requirements of your application, such as the input voltage range, output voltage range, and switching frequency. You can use the device's datasheet and application notes to determine the optimal configuration for your specific use case.
  • The MAX9272AGTM+T has a maximum junction temperature of 150°C. To ensure reliable operation at high temperatures, you should provide adequate heat sinking, use a thermally conductive PCB material, and avoid overheating the device. You can also use thermal simulation tools to estimate the device's temperature and optimize your design accordingly.
  • To troubleshoot common issues with the MAX9272AGTM+T, you should first check the device's datasheet and application notes to ensure that you have followed the recommended design guidelines. You can also use oscilloscopes and other debugging tools to identify the root cause of the issue. Common causes of oscillations or instability include inadequate decoupling, poor PCB layout, and incorrect component selection.
  • The MAX9272AGTM+T is designed to meet the EMI and EMC requirements of various standards, such as CISPR 22 and EN 55022. To ensure compliance, you should follow the recommended PCB layout and design guidelines, use EMI filters and shielding, and perform EMI and EMC testing to validate your design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9272AGTM+T Overview

Use the download button to access the MAX9272AGTM+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX92, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
