- Part Number MAX9273GTL+
- Manufacturer Analog Devices
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - T4066+3
- Released Date Nov 4, 2020
- Last Modified Date Oct 8, 2024 5:00 AM UTC
- Pinout / Pin List Click Here (Member Only)
MAX9273GTL+ Details
-
Manufacturer Part Number:
MAX9273GTL+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
40-LFCSP-6X6X0.75
-
Package Description:
LCC-40
-
Pin Count:
40
-
Manufacturer Package Code:
40-LFCSP-6X6X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2012-07-17
MAX9273GTL+ Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the MAX9273GTL+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. The device's exposed pad should be connected to a solid ground plane to ensure good thermal performance and noise reduction.
-
To optimize the performance of the MAX9273GTL+ in a high-temperature environment, ensure good thermal design and heat dissipation. Use a heat sink or thermal pad to reduce the junction temperature, and consider using a thermal interface material to improve heat transfer. Additionally, reduce the power consumption and clock frequency to minimize self-heating.
-
The maximum cable length supported by the MAX9273GTL+ depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 10 meters at 1 Gbps and up to 5 meters at 3 Gbps. It's recommended to use a cable with a characteristic impedance of 100 ohms and to follow the recommended PCB layout and termination guidelines.
-
To troubleshoot issues with the MAX9273GTL+, start by checking the power supply and clock signals. Verify that the device is properly powered and clocked, and that the input signals are within the recommended specifications. Use an oscilloscope to check the signal integrity and eye diagrams, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
-
Yes, the MAX9273GTL+ can be used in non-automotive applications, such as industrial, medical, or consumer electronics. However, it's essential to ensure that the device meets the specific requirements of the application, including operating temperature, power consumption, and signal integrity. Consult the datasheet and application notes for guidance on using the device in non-automotive applications.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MAX9273GTL+ Overview

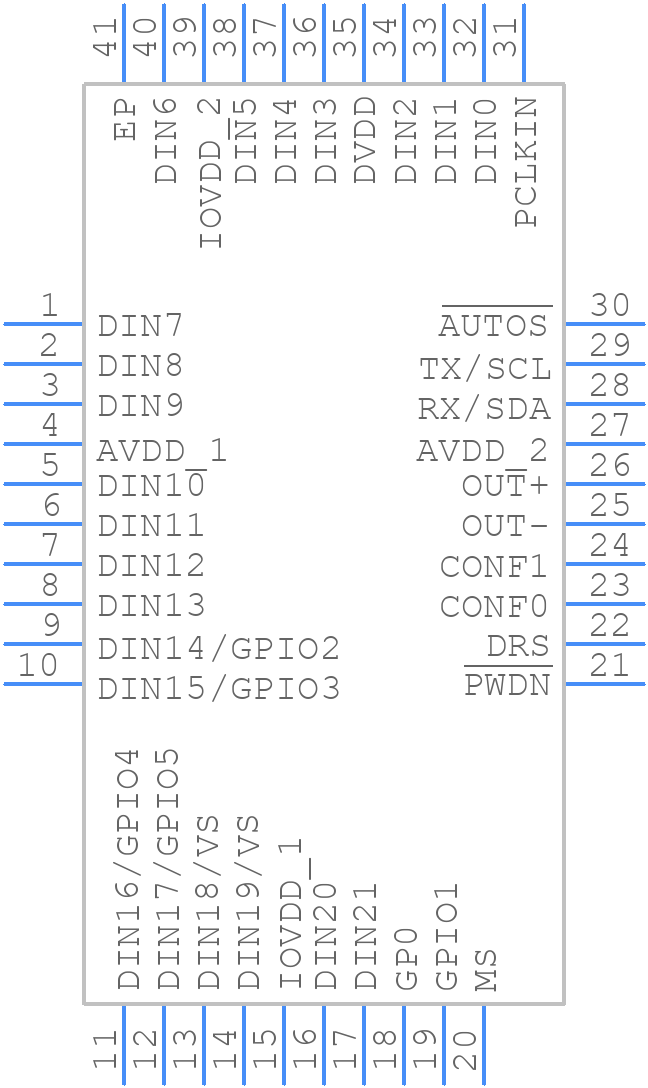

Use the download button to access the MAX9273GTL+ schematic symbol, PCB footprint, and 3D model.
