MAX9277GTM+ - Analog Devices

Description: 3.12Gbps GMSL Serializers for Coax or STP Output Drive and LVDS Input

Download MAX9277GTM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

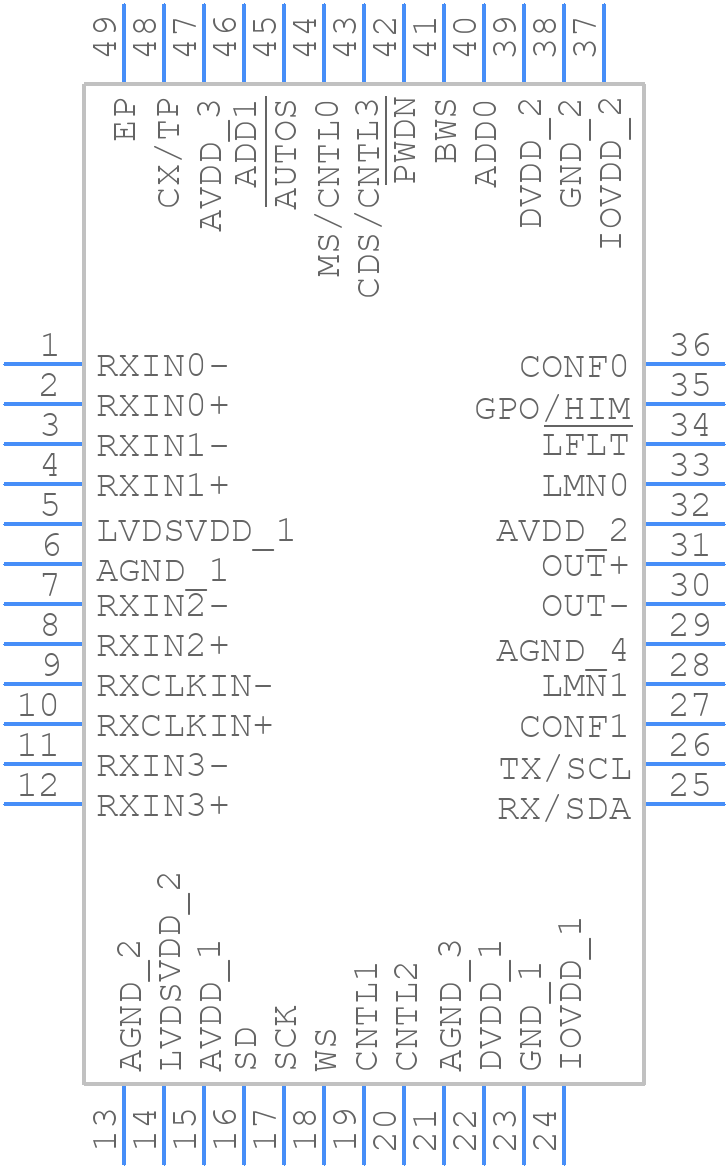

MAX9277GTM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9277GTM+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4877+6
click to zoom
3D Models
MAX9277GTM+ - Analog Devices - 3D model - Quad Flat No-Lead - T4877+6
click to zoom

MAX9277GTM+ Details

  • Manufacturer Part Number:

    MAX9277GTM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Package Description:

    TQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-08-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    195 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    1.9 V

  • Supply Voltage1-Min:

    1.7 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX9277GTM+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX9277GTM+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to place it as close as possible to the device.
  • To optimize the performance of the MAX9277GTM+, it's recommended to follow the application note guidelines, use the recommended component values, and adjust the device settings according to the specific requirements of your application. Additionally, it's recommended to perform thorough testing and characterization of the device in your specific use case.
  • The maximum operating temperature range for the MAX9277GTM+ is -40°C to +125°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • Yes, the MAX9277GTM+ is AEC-Q100 qualified and can be used in automotive applications. However, it's recommended to follow the specific requirements and guidelines for automotive applications, such as those related to temperature, vibration, and electromagnetic compatibility.
  • To troubleshoot issues with the MAX9277GTM+, it's recommended to follow a systematic approach, starting with checking the power supply, clock signals, and data transmission. Use oscilloscopes and logic analyzers to debug the signals, and consult the datasheet and application notes for guidance. Additionally, it's recommended to contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9277GTM+ Overview

Use the download button to access the MAX9277GTM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX92, or try a keyword search, such as Line Driver or Receivers
