MAX9277GTM+T - Analog Devices

Description: 3.12Gbps GMSL Serializers for Coax or STP Output Drive and LVDS Input

Download MAX9277GTM+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

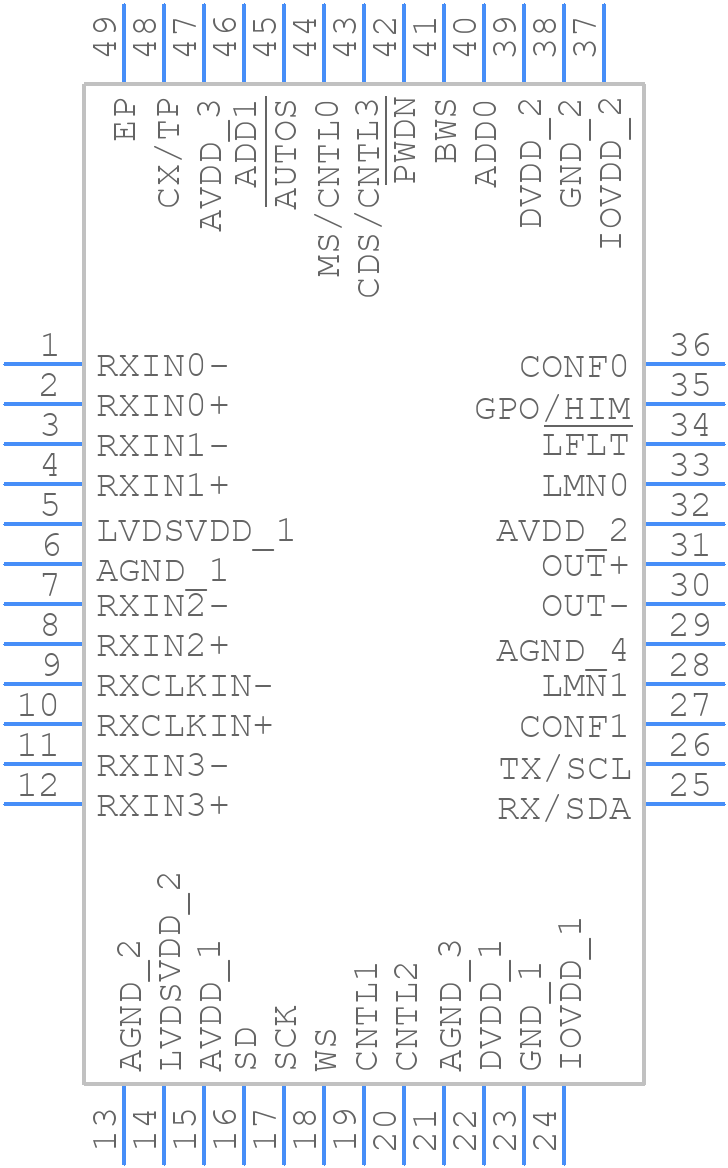

MAX9277GTM+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9277GTM+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4877+4
click to zoom
3D Models
MAX9277GTM+T - Analog Devices - 3D model - Quad Flat No-Lead - T4877+4
click to zoom

MAX9277GTM+T Details

  • Manufacturer Part Number:

    MAX9277GTM+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-08-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    195 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX9277GTM+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9277GTM+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which involves applying power to the device, waiting for the internal voltage regulators to stabilize, and then configuring the device through the SPI interface. The datasheet provides a detailed power-up sequence diagram.
  • The maximum cable length supported by the MAX9277GTM+T depends on the specific application and the type of cable used. In general, the device can support cable lengths up to 10 meters, but signal integrity may be affected by the cable length, particularly at higher frequencies. It's recommended to use high-quality cables and to follow proper cable termination and routing practices to minimize signal degradation.
  • To troubleshoot issues with the MAX9277GTM+T, it's recommended to follow a systematic approach, which involves checking the power supply, verifying the device configuration, and analyzing the signal waveforms using an oscilloscope or logic analyzer. The datasheet provides a troubleshooting guide with common issues and solutions.
  • The MAX9277GTM+T is specified to operate over a temperature range of -40°C to +125°C, but its performance may be affected at higher temperatures. It's recommended to follow proper thermal management practices, such as using heat sinks or thermal interfaces, to ensure reliable operation in high-temperature environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9277GTM+T Overview

Use the download button to access the MAX9277GTM+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX92, or try a keyword search, such as Line Driver or Receivers
