MAX9277GTM/V+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9277GTM/V+ - SerDes, Serialiser, 3.12 Gbps, LVDS, CML, TQFN, 48 Pins

Download MAX9277GTM/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

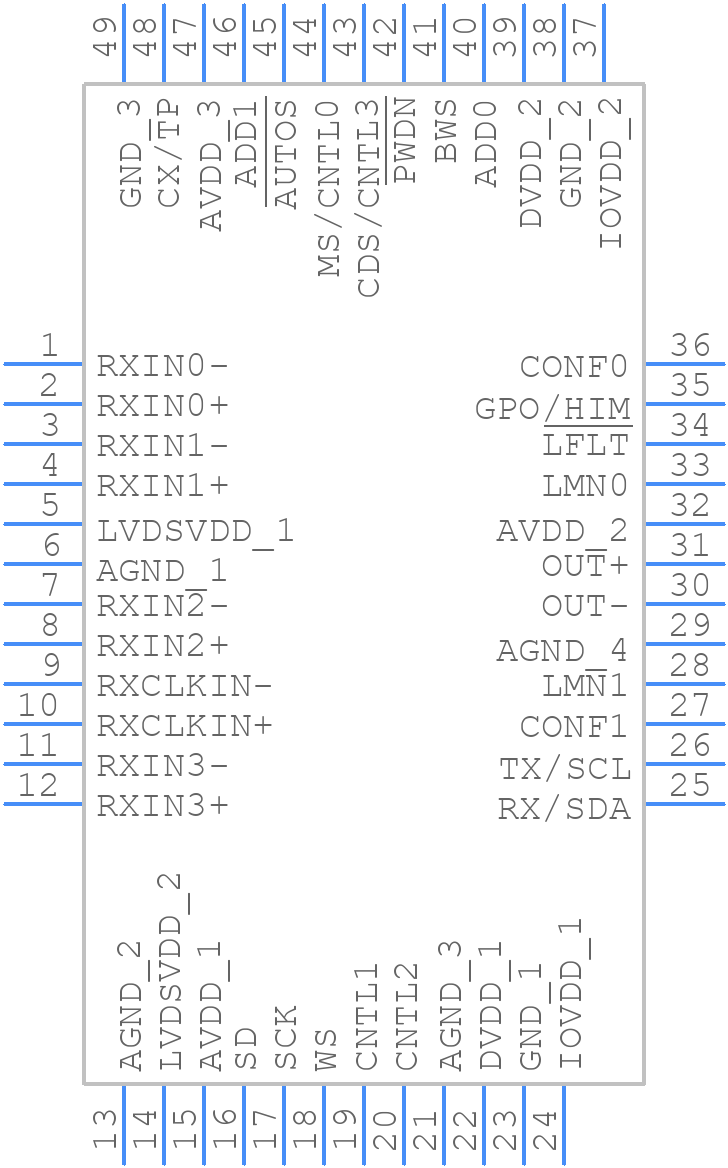

Symbol
MAX9277GTM/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9277GTM/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4877+6
click to zoom
3D Models
MAX9277GTM/V+ - Analog Devices - 3D model - Quad Flat No-Lead - T4877+6
click to zoom

MAX9277GTM/V+ Details

  • Manufacturer Part Number:

    MAX9277GTM/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-08-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Interface IC Type:

    LINE DRIVER

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    195 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX9277GTM/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX9277GTM/V+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a common-mode filter and to decouple the power supplies with capacitors.
  • To optimize the performance of the MAX9277GTM/V+ in a noisy environment, it's recommended to use shielding, filtering, and grounding techniques to reduce electromagnetic interference (EMI). Additionally, using a common-mode filter and decoupling the power supplies with capacitors can help to reduce noise.
  • The maximum operating temperature range for the MAX9277GTM/V+ is -40°C to +125°C. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
  • To troubleshoot issues with the MAX9277GTM/V+, it's recommended to check the power supply voltages, signal integrity, and PCB layout. Additionally, using an oscilloscope and logic analyzer can help to identify issues with the device's operation.
  • Yes, the MAX9277GTM/V+ is AEC-Q100 qualified and can be used in automotive applications. However, it's recommended to follow the guidelines and requirements specified in the AEC-Q100 standard to ensure the device meets the necessary reliability and performance requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9277GTM/V+ Overview

Use the download button to access the MAX9277GTM/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX92, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
