MAX9281GTM/V+ - Analog Devices

Description: 3.12Gbps GMSL Serializers for Coax or STP Output Drive and LVDS Input

Download MAX9281GTM/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

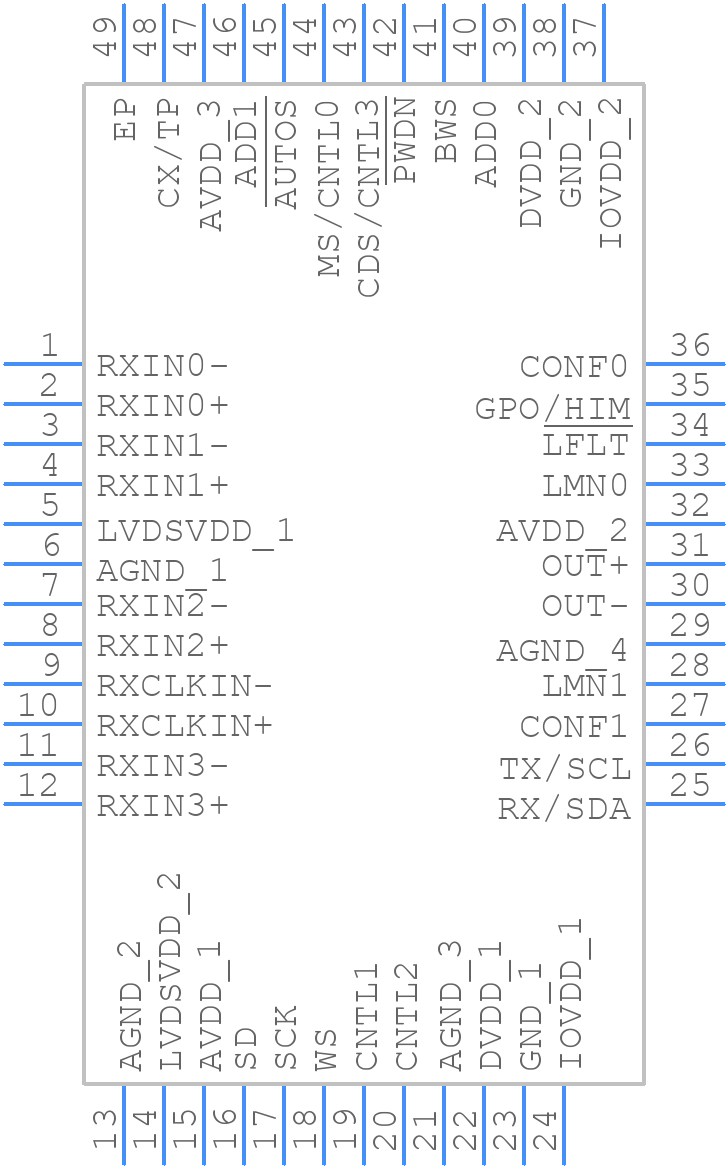

MAX9281GTM/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9281GTM/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX9281GTM/V+
click to zoom
3D Models
MAX9281GTM/V+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX9281GTM/V+
click to zoom

MAX9281GTM/V+ Details

  • Manufacturer Part Number:

    MAX9281GTM/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-08-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Interface IC Type:

    LINE DRIVER

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    195 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX9281GTM/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX9281GTM/V+ is to keep the analog and digital grounds separate, use a solid ground plane, and keep the power supply traces as short as possible. Additionally, it is recommended to use a 4-layer PCB with a dedicated layer for the power supply and another layer for the ground plane.
  • The configuration of the MAX9281GTM/V+ for a specific camera module depends on the module's requirements. The device has several programmable registers that can be configured using the I2C interface. The recommended approach is to consult the camera module's datasheet and the MAX9281GTM/V+ datasheet to determine the required settings for the device's registers.
  • The maximum cable length supported by the MAX9281GTM/V+ depends on the specific application and the type of cable used. In general, the device can support cable lengths of up to 10 meters at a data rate of 1 Gbps. However, it is recommended to consult the datasheet and perform signal integrity simulations to determine the maximum cable length for a specific application.
  • To troubleshoot issues with the MAX9281GTM/V+, it is recommended to follow a systematic approach. First, verify that the device is properly powered and configured. Then, use a logic analyzer or oscilloscope to verify the signal integrity and timing. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the MAX9281GTM/V+ is AEC-Q100 qualified and is suitable for automotive applications. The device meets the requirements for automotive reliability and can operate in a wide temperature range of -40°C to +125°C.
