MAX9290GTM/V+T - Analog Devices

Description: Ideal for High-Definition Video Applications • 4-Lane CSI-2 Output with Up to 1Gbps Per Lane • Works with Low-Cost 50Ω Coax Cable and FAKRA Connectors or 100Ω STP • 104MHz High-Bandwidth Mode Supports 1920 x 720p/60Hz Display with 24-Bit Color • Equalization Allows 15m Cable at Full Speed • Up to 192kHz Sample Rate and 32-Bit Sample Depth For 7.1 Channel HD Audio • Audio Clock from Audio Source or Audio Sink • Color Lookup Table for Gamma Correction • CNTL0–CNTL3 Control Outputs for HDMI/MHL ● M

Download MAX9290GTM/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

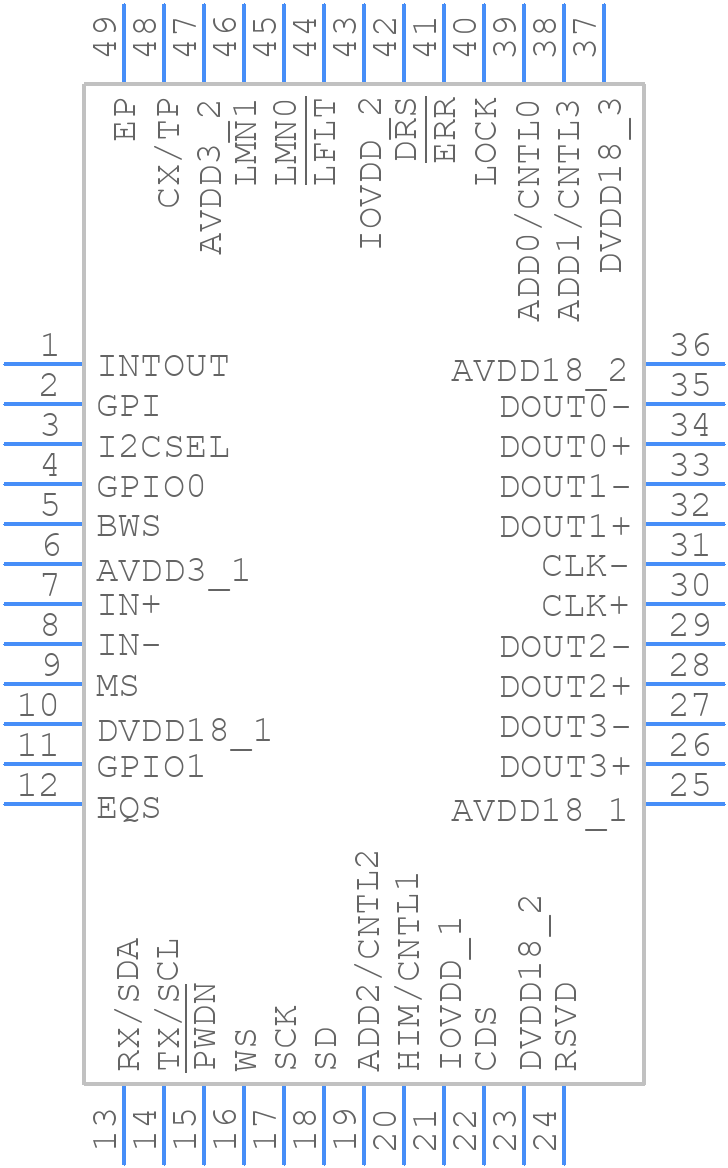

MAX9290GTM/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9290GTM/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4877+4
click to zoom
3D Models
MAX9290GTM/V+T - Analog Devices - 3D model - Quad Flat No-Lead - T4877+4
click to zoom

MAX9290GTM/V+T Details

  • Manufacturer Part Number:

    MAX9290GTM/V+T

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9290GTM/V+T Overview

Use the download button to access the MAX9290GTM/V+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX92, or try a keyword search, such as Line Driver or Receivers
