MAX9296AGTM/V+ - Analog Devices

Description: MAXIM INTEGRATED / ANALOG DEVICES - MAX9296AGTM/V+ - SERDES DRIVERS

Download MAX9296AGTM/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

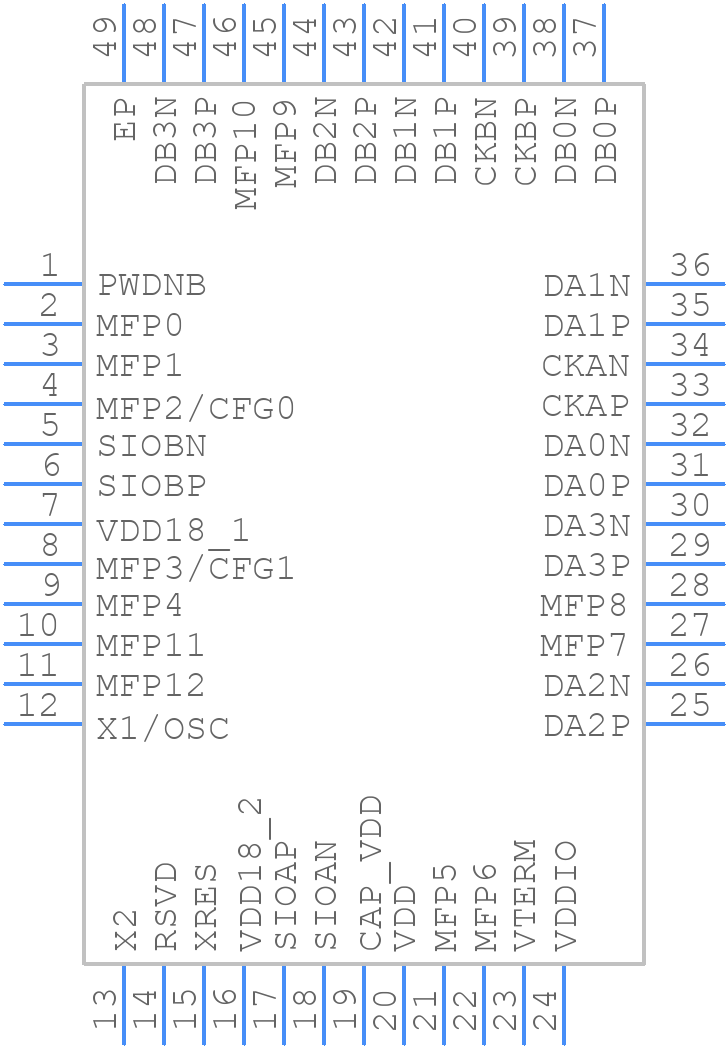

Symbol
MAX9296AGTM/V+ - Analog Devices - PCB symbol
click to zoom

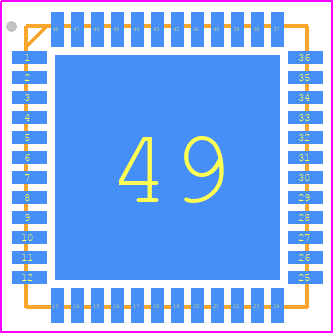

PCB Footprints
MAX9296AGTM/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4877+11
click to zoom
3D Models
MAX9296AGTM/V+ - Analog Devices - 3D model - Quad Flat No-Lead - T4877+11
click to zoom

MAX9296AGTM/V+ Details

  • Manufacturer Part Number:

    MAX9296AGTM/V+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    TQFN-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • High Level Input Current-Max:

    0.000001 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GMSL

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Number of Functions:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.19 V

  • Output Low Current-Max:

    0.004 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Receive Delay-Max:

    350000 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    550 mA

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Supply Voltage1-Max:

    1.9 V

  • Supply Voltage1-Min:

    1.7 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

MAX9296AGTM/V+ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a common mode choke and ferrite beads to filter the power supply lines.
  • Use the shutdown mode to reduce power consumption when the device is not in use. Also, adjust the clock frequency and voltage regulator settings to minimize power consumption. Use a low-dropout linear regulator to reduce power consumption.
  • The maximum operating temperature range for the MAX9296AGTM/V+ is -40°C to +125°C. However, the device can operate up to 150°C for short periods of time.
  • Use an oscilloscope to check the clock signals, power supply lines, and output signals. Check for proper power supply decoupling, and ensure that the device is properly configured and initialized. Consult the datasheet and application notes for troubleshooting guidelines.
  • No, the MAX9296AGTM/V+ is not designed for radiation-hardened applications. It is not tested or guaranteed to operate in high-radiation environments.
