MAX96714FGTJ/V+T - Analog Devices

Description: Single GMSL2/GMSL1 to CSI-2 Deserializer

Download MAX96714FGTJ/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

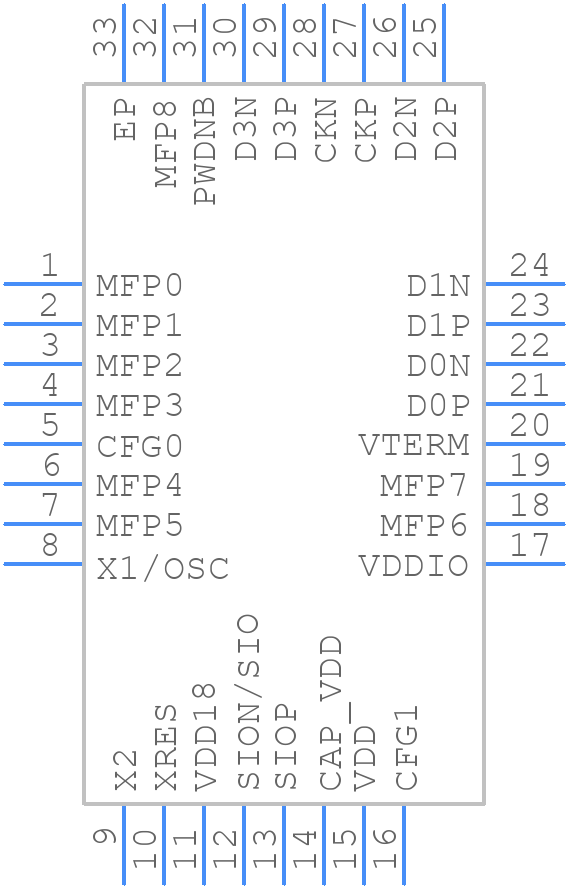

Symbol
MAX96714FGTJ/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX96714FGTJ/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T3255+8
click to zoom
3D Models
MAX96714FGTJ/V+T - Analog Devices - 3D model - Quad Flat No-Lead - T3255+8
click to zoom

MAX96714FGTJ/V+T Details

  • Manufacturer Part Number:

    MAX96714FGTJ/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-06-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    DESERIALIZER

  • Interface Standard:

    GMSL

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.19 V

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    4

  • Screening Level:

    AEC-Q100; ISO 26262-ASIL B

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    220 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX96714FGTJ/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX96714's performance. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device.
  • The MAX96714 requires a single 3.3V or 5V power supply, and the recommended biasing scheme is to connect the VCC pin to the power supply and the GND pin to the ground plane. Additionally, it's essential to ensure that the power supply is clean and stable, and that the device is properly decoupled with capacitors.
  • The MAX96714 can support data rates up to 1.5 Gbps, making it suitable for high-speed applications such as automotive camera modules and other high-speed data transmission systems.
  • The MAX96714 is a flexible device that can be configured to work with different camera modules. The configuration is typically done through the I2C interface, where the user can set the desired mode, data rate, and other parameters. The datasheet provides detailed information on the available registers and their settings.
  • The typical power consumption of the MAX96714 is around 150mW, making it a low-power device suitable for battery-powered applications. However, the actual power consumption may vary depending on the specific use case and operating conditions.
