MAX96716F - Analog Devices

Description: ● Full-Duplex Capability over a Single Coax or STP Cable • 3Gbps Forward-Link Rate • 187.5Mbps Reverse-Link Rate ● Dual Four-Lane D-PHY or Dual Two-Lane C-PHY MIPI CSI-2 v1.3 Output Ports • Aggregation and Replication Functions • Support for 16 Virtual Channels • Supports RAW8/10/12/14/16/20, RGB565/666/888, YUV422 8-/10-Bit, User-Defined and Generic LongPacket Data Types ● Advanced MIPI D-PHY v1.2 Transmitters • 80Mbps to 2.5Gbps per Lane • Polarity Flip and Data-Lane Reassignment ● Advanced M

Download MAX96716F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

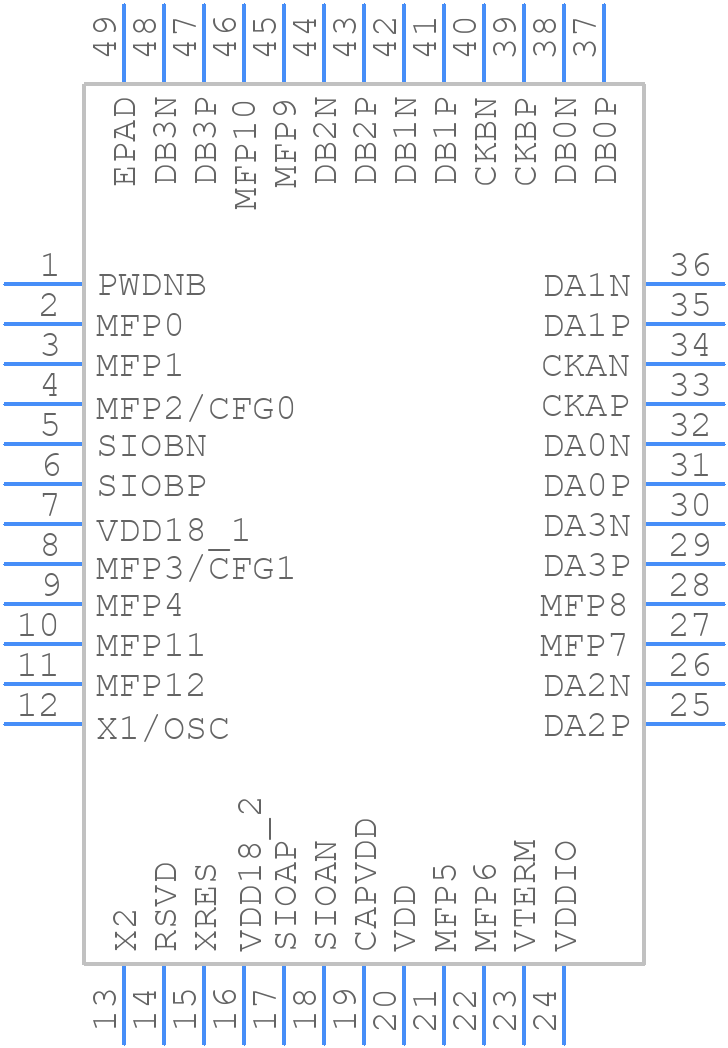

MAX96716F - Analog Devices - PCB symbol
click to zoom
PCB Footprints

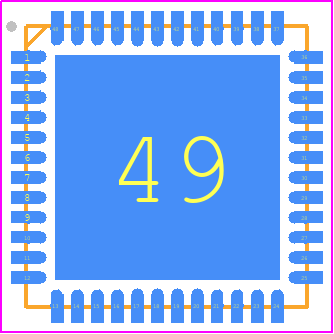

MAX96716F - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-TQFN
