MAX96724FGTN/V+T - Analog Devices

Description: Quad Tunneling GMSL2/1 to CSI-2 Deserializer

Download MAX96724FGTN/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX96724FGTN/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints

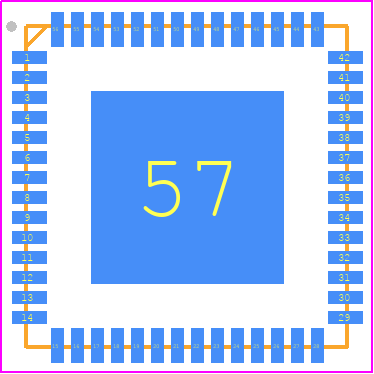

MAX96724FGTN/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T5688+6C
click to zoom
3D Models
MAX96724FGTN/V+T - Analog Devices - 3D model - Quad Flat No-Lead - T5688+6C
click to zoom

MAX96724FGTN/V+T Details

  • Manufacturer Part Number:

    MAX96724FGTN/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    56-LFCSP-8X8X0.75

  • Package Description:

    TQFN-56

  • Pin Count:

    56

  • Manufacturer Package Code:

    56-LFCSP-8X8X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    NO

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    DESERIALIZER

  • Interface Standard:

    GMSL

  • JESD-30 Code:

    S-PQCC-N56

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.38 V

  • Output Characteristics:

    OPEN-DRAIN

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC56,.32SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    4

  • Screening Level:

    AEC-Q100; ISO 26262-ASIL B

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    725 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8 mm

MAX96724FGTN/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX96724FGTN/V+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • To properly configure the MAX96724FGTN/V+T, you need to consider factors such as the input signal type, frequency, and amplitude, as well as the desired output format and resolution. You can use the device's evaluation board and software development kit (SDK) to experiment with different settings and find the optimal configuration for your application.
  • The MAX96724FGTN/V+T has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • To troubleshoot issues with the MAX96724FGTN/V+T, start by checking the input signal quality, power supply voltage, and PCB layout. Use an oscilloscope to visualize the input and output signals and identify any anomalies. You can also use the device's built-in diagnostic features, such as the fault detection and reporting mechanism, to help identify the root cause of the issue.
  • The MAX96724FGTN/V+T is a high-frequency device that can be susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize the risk of interference, use proper shielding, grounding, and filtering techniques, such as using a Faraday cage or shielding enclosure, and placing the device away from sources of EMI and RFI.
