MAX96752GTN/V+ - Analog Devices

Description: GMSL2 Deserializer with Dual LVDS (OLDI) Output

Download MAX96752GTN/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX96752GTN/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

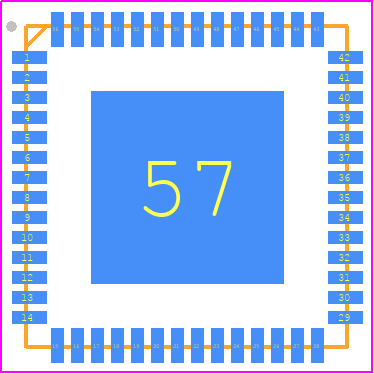

MAX96752GTN/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 56-LFCSP-8X8X0.75_2023-1
click to zoom
3D Models
MAX96752GTN/V+ - Analog Devices - 3D model - Quad Flat No-Lead - 56-LFCSP-8X8X0.75_2023-1
click to zoom

MAX96752GTN/V+ Details

  • Manufacturer Part Number:

    MAX96752GTN/V+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-56

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE RECEIVER

  • JESD-30 Code:

    S-PQCC-N56

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.004 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC56,.31SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    8

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8 mm

MAX96752GTN/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX96752GTN/V+ can be found in the MAX96752 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the device's datasheet.
  • To optimize the performance of the MAX96752GTN/V+, engineers should consider factors such as input signal quality, output load impedance, and power supply noise. Analog Devices provides application notes and design guides that offer specific recommendations for optimizing performance in various applications.
  • The MAX96752GTN/V+ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and engineers should consult the datasheet for specific temperature-related specifications and recommendations.
  • Yes, the MAX96752GTN/V+ is AEC-Q100 qualified and suitable for automotive applications. However, engineers should ensure that the device meets the specific requirements of their application, including temperature range, vibration, and electromagnetic compatibility.
  • Analog Devices provides a troubleshooting guide for the MAX96752GTN/V+ in the device's datasheet and application notes. Engineers can also contact Analog Devices' technical support team for assistance with troubleshooting and debugging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX96752GTN/V+ Overview

Use the download button to access the MAX96752GTN/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX96, or try a keyword search, such as Line Driver or Receivers
