MAX96752GTN/VY+ - Analog Devices

Description: GMSL2 Deserializer with Dual LVDS (OLDI) Output

Download MAX96752GTN/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX96752GTN/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

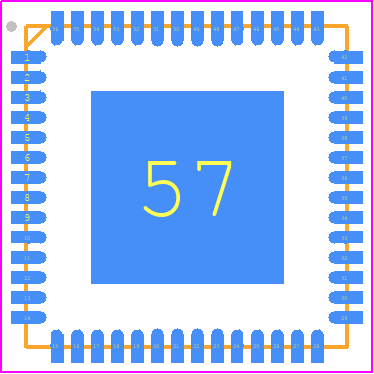

MAX96752GTN/VY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T5688Y+6C
click to zoom
3D Models
MAX96752GTN/VY+ - Analog Devices - 3D model - Quad Flat No-Lead - T5688Y+6C
click to zoom

MAX96752GTN/VY+ Details

  • Manufacturer Part Number:

    MAX96752GTN/VY+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-56

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE RECEIVER

  • JESD-30 Code:

    S-PQCC-N56

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.004 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC56,.31SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    8

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8 mm

MAX96752GTN/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX96752GTN/VY+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to keep the signal traces short and direct.
  • The MAX96752GTN/VY+ requires configuration through the I2C interface to set the desired mode, gain, and other parameters. The specific configuration will depend on the camera module being used, and may require consulting the camera module's datasheet and the MAX96752GTN/VY+ datasheet. Analog Devices also provides a software development kit (SDK) to help with configuration and evaluation.
  • The maximum cable length supported by the MAX96752GTN/VY+ depends on the specific application and the type of cable used. In general, the device can support cable lengths up to 10 meters at 1 Gbps, but this may vary depending on the signal quality and the specific use case. It's recommended to consult the datasheet and perform testing to determine the maximum cable length for a specific application.
  • Troubleshooting issues with the MAX96752GTN/VY+ typically involves checking the power supply, clock signals, and data signals. It's also important to verify that the device is properly configured and that the camera module is functioning correctly. Analog Devices provides a range of tools and resources, including evaluation boards and software development kits, to help with troubleshooting and debugging.
  • Yes, the MAX96752GTN/VY+ is AEC-Q100 qualified and is suitable for use in automotive applications. It meets the requirements for temperature range, voltage supply, and electromagnetic compatibility (EMC) for automotive systems. However, it's still important to consult the datasheet and perform testing to ensure that the device meets the specific requirements of the application.
