Part Image

MAX96752GTN/VY+T - Analog Devices

Description: GMSL2 Deserializer with Dual LVDS (OLDI) Output

Download MAX96752GTN/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

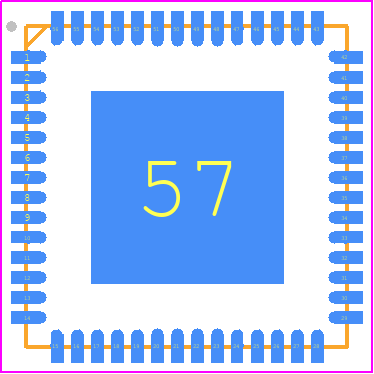

MAX96752GTN/VY+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T5688Y+6C
click to zoom
3D Models
MAX96752GTN/VY+T - Analog Devices  - 3D model - Quad Flat No-Lead - T5688Y+6C
click to zoom

MAX96752GTN/VY+T Details

  • Manufacturer Part Number:

    MAX96752GTN/VY+T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-56

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE RECEIVER

  • JESD-30 Code:

    S-PQCC-N56

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.004 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC56,.31SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    8

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8 mm

MAX96752GTN/VY+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX96752GTN/VY+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To properly configure the MAX96752GTN/VY+T, you need to consider factors such as the input voltage range, output voltage range, and switching frequency. You should also consult the datasheet and application notes to determine the optimal values for the external components, such as the inductor, capacitors, and resistors.
  • The MAX96752GTN/VY+T has a maximum junction temperature of 150°C. To ensure reliable operation at high temperatures, you should provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure good airflow around the device. You should also consider the thermal resistance of the PCB and the surrounding components.
  • To troubleshoot issues with the MAX96752GTN/VY+T, you should first consult the datasheet and application notes to ensure that the device is properly configured and that the external components are correctly selected. You can also use oscilloscopes and other diagnostic tools to measure the input and output voltages, currents, and frequencies. Additionally, you can try to isolate the problem by disconnecting the load or the input voltage source.
  • The MAX96752GTN/VY+T is designed to meet the EMI and EMC requirements of various regulatory standards, such as CISPR 22 and FCC Part 15. To ensure compliance, you should follow good design practices, such as using a shielded enclosure, minimizing the length of the cables, and using EMI filters or common-mode chokes. You should also consult the datasheet and application notes for specific guidance on EMI and EMC considerations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX96752GTN/VY+T Overview

Use the download button to access the MAX96752GTN/VY+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX96, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
