MAX9700DEUB+ - Analog Devices

Description: 1.2W, Low-EMI, Filterless, Class D Audio Amplifier

Download MAX9700DEUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

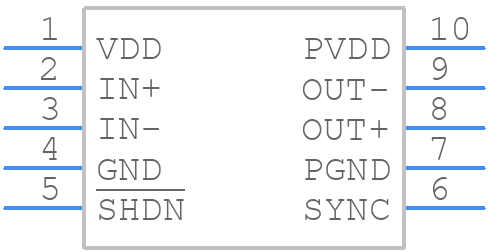

Symbol
MAX9700DEUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9700DEUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX_2023
click to zoom
3D Models
MAX9700DEUB+ - Analog Devices - 3D model - Small Outline Packages - 10 µMAX_2023
click to zoom

MAX9700DEUB+ Details

  • Manufacturer Part Number:

    MAX9700DEUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2003-11-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    20 dB

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.8 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9700DEUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9700DEUB+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the audio input and output connectors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the MAX9700DEUB+ for low noise and distortion, ensure that the device is operated within its recommended operating conditions, use a low-noise power supply, and minimize the length of the input and output traces. Additionally, use a high-quality audio input capacitor and ensure that the device is properly bypassed.
  • The maximum power dissipation of the MAX9700DEUB+ is 1.4W. However, this can be reduced by using a heat sink or by operating the device at a lower supply voltage.
  • Yes, the MAX9700DEUB+ can be used in a battery-powered device. However, it's recommended to use a low-dropout linear regulator to regulate the supply voltage and to minimize power consumption. Additionally, consider using a power-saving mode or shutdown feature to reduce power consumption when the device is not in use.
  • Common issues with the MAX9700DEUB+ include noise, distortion, and oscillation. To troubleshoot these issues, check the power supply voltage, ensure that the device is properly bypassed, and verify that the input and output traces are properly routed. Additionally, use an oscilloscope to measure the output signal and identify any anomalies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9700DEUB+ Overview

Use the download button to access the MAX9700DEUB+ schematic symbol, PCB footprint, and 3D model.
