MAX9711ETC+ - Analog Devices

Description: Audio Amplifiers 3W Mono/Stereo BTL Audio Power Amplifiers with Shutdown

Download MAX9711ETC+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

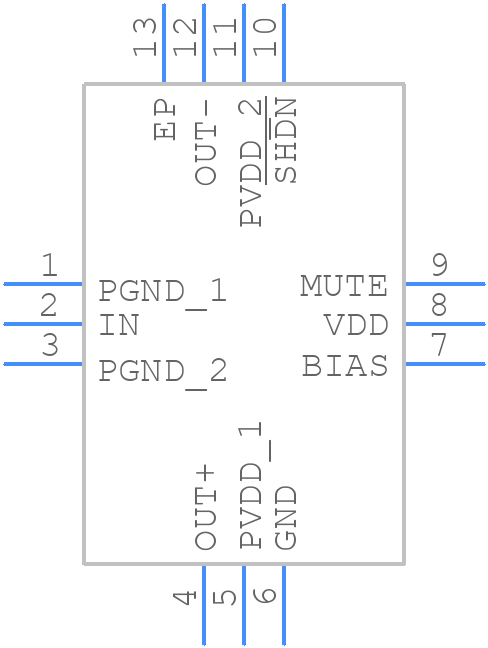

MAX9711ETC+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9711ETC+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1244-4
click to zoom
3D Models
MAX9711ETC+ - Analog Devices - 3D model - Quad Flat No-Lead - T1244-4
click to zoom

MAX9711ETC+ Details

  • Manufacturer Part Number:

    MAX9711ETC+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.80 MM HEIGHT, EXPOSED PAD, QFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2003-05-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    3 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.16SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    17 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX9711ETC+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX9711ETC+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the audio codec or processor. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and interference.
  • To optimize the performance of the MAX9711ETC+ in a noisy environment, use a ferrite bead or a common-mode choke to filter out high-frequency noise on the power supply lines. Additionally, use a shielded cable for the audio signals and keep the device away from sources of electromagnetic interference (EMI).
  • The MAX9711ETC+ can tolerate a maximum power supply voltage of 5.5V. Exceeding this voltage may damage the device. It's recommended to use a voltage regulator or a power supply with overvoltage protection to ensure the device operates within its specified voltage range.
  • The MAX9711ETC+ can be configured for a specific audio application by adjusting the gain settings, filter cutoff frequencies, and output impedance. Refer to the datasheet and application notes for specific configuration guidelines and examples for common audio applications such as line-in, microphone, and headphone amplifiers.
  • The typical settling time for the MAX9711ETC+ is around 10ms to 20ms, depending on the specific configuration and application. This settling time is the time it takes for the device to stabilize its output after a change in the input signal or configuration.
