MAX9737ETG+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9737ETG+ - Audio Power Amplifier, 7 W, D, 1 Channel, 8V to 28V, TQFN, 24 Pins

Download MAX9737ETG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

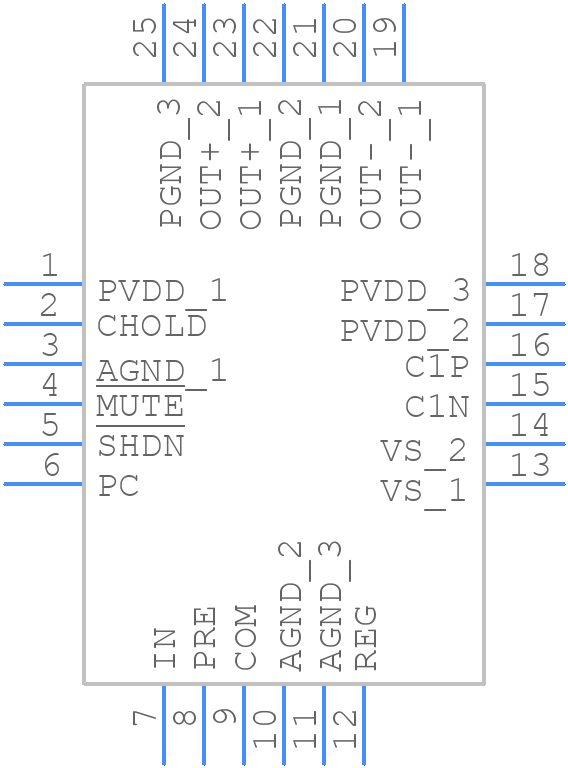

Symbol
MAX9737ETG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9737ETG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4
click to zoom
3D Models
MAX9737ETG+ - Analog Devices - 3D model - Quad Flat No-Lead - T2444+4
click to zoom

MAX9737ETG+ Details

  • Manufacturer Part Number:

    MAX9737ETG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MO-229, TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2008-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    13 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX9737ETG+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9737ETG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the sense lines to minimize errors.
  • To optimize the performance of the MAX9737ETG+ in a noisy environment, use a low-pass filter on the input lines, add a ferrite bead or a common-mode choke to the input lines, and use a shielded cable for the sense lines. Additionally, consider using a noise-reducing capacitor on the output lines.
  • The MAX9737ETG+ can handle a maximum current of 3A, but it's recommended to derate the current based on the ambient temperature and the PCB layout. Refer to the thermal derating curve in the datasheet for more information.
  • The MAX9737ETG+ is rated for operation up to 125°C, but it's recommended to derate the current and voltage based on the ambient temperature. Refer to the thermal derating curve in the datasheet for more information.
  • To troubleshoot issues with the MAX9737ETG+, start by checking the input and output voltages, and the sense lines for any signs of noise or oscillation. Use an oscilloscope to measure the waveforms and check for any signs of instability. Also, verify that the device is properly powered and that the input and output capacitors are properly sized.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9737ETG+ Overview

Use the download button to access the MAX9737ETG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX97, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
