MAX9737ETG+T - Analog Devices

Description: Audio Amplifiers Mono 7W Class D Amplifier 24 TQFN-EP

Download MAX9737ETG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

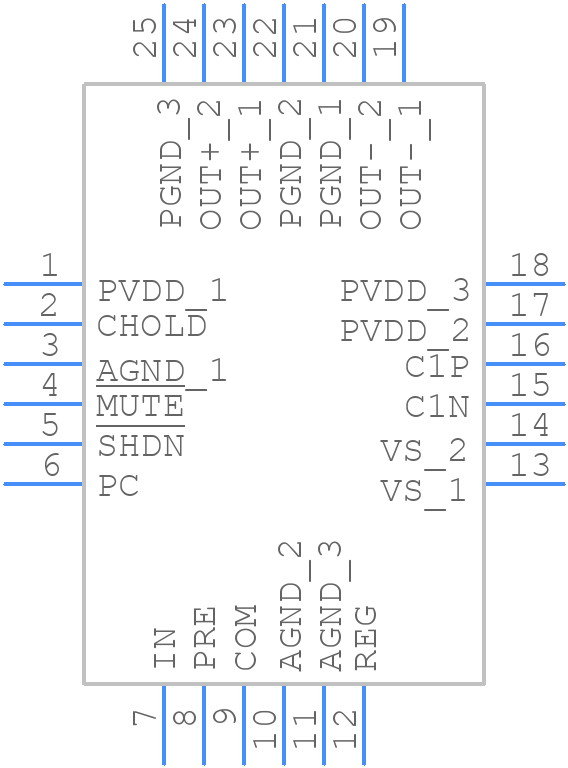

Symbol
MAX9737ETG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9737ETG+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4
click to zoom
3D Models
MAX9737ETG+T - Analog Devices - 3D model - Quad Flat No-Lead - T2444+4
click to zoom

MAX9737ETG+T Details

  • Manufacturer Part Number:

    MAX9737ETG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2008-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    13.6 dB

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    13 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX9737ETG+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9737ETG+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitor should be chosen based on the input voltage, output voltage, and the desired ripple voltage. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the input voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high reliability.
  • The MAX9737ETG+T can operate in ambient temperatures up to 125°C, but the device's performance and reliability may degrade at higher temperatures. It's recommended to derate the device's output current and voltage according to the temperature derating curve provided in the datasheet.
  • Yes, the MAX9737ETG+T is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard for automotive applications and is manufactured using a robust process that ensures high reliability and low defect rates.
  • To troubleshoot issues with the MAX9737ETG+T, start by checking the input voltage, output voltage, and output current using an oscilloscope or a multimeter. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Also, verify that the device is properly soldered and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices' technical support.
