MAX98307ETE+T - Analog Devices

Description: Audio Amplifiers 3.3W Mono Class D Amplifier

Download MAX98307ETE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

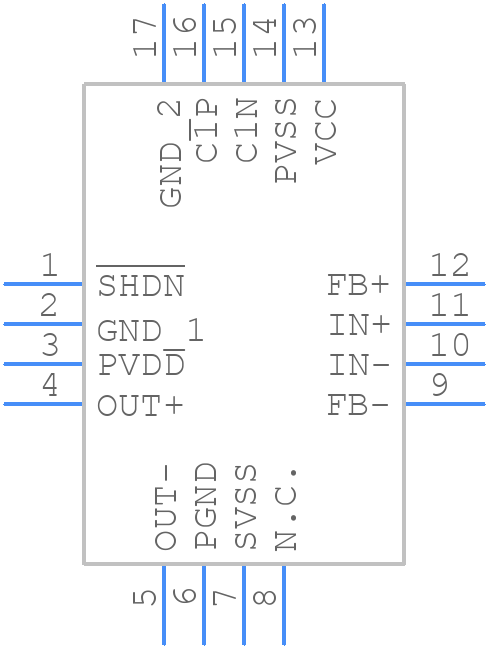

MAX98307ETE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98307ETE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX98307ETE+T
click to zoom
3D Models
MAX98307ETE+T - Analog Devices - 3D model - Quad Flat No-Lead - MAX98307ETE+T
click to zoom

MAX98307ETE+T Details

  • Manufacturer Part Number:

    MAX98307ETE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2011-07-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS DG AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    3.3 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX98307ETE+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX98307ETE+T is to keep the analog and digital grounds separate, use a solid ground plane, and keep the audio signal traces away from the digital signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the MAX98307ETE+T in a noisy environment, it's recommended to use a ferrite bead or a common-mode choke on the power supply lines, use a shielded cable for the audio signal, and keep the device away from sources of electromagnetic interference (EMI). Additionally, using a low-ESR capacitor on the power supply pins can help to reduce noise.
  • The maximum power handling capability of the MAX98307ETE+T is dependent on the output impedance of the device and the load impedance. According to the datasheet, the device can deliver up to 2.5W of power into a 4Ω load. However, it's recommended to derate the power handling capability based on the ambient temperature and the duty cycle of the device.
  • To troubleshoot issues with the MAX98307ETE+T, it's recommended to check the power supply voltage, the audio signal input, and the output impedance of the device. Additionally, using an oscilloscope to measure the output waveform and a spectrum analyzer to measure the noise floor can help to identify the source of the issue. It's also recommended to check the PCB layout and the component values to ensure that they are correct.
  • The MAX98307ETE+T is not specifically designed for automotive applications, but it can be used in automotive systems with proper design and testing. The device meets the requirements for automotive applications in terms of operating temperature range, voltage supply, and EMI immunity. However, it's recommended to perform additional testing and validation to ensure that the device meets the specific requirements of the automotive application.
