MAX98365AEWC+T - Analog Devices

Description: Tiny, Cost-Effective, 14V Plug-and-Play Digital Class-D Amplifier

Download MAX98365AEWC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

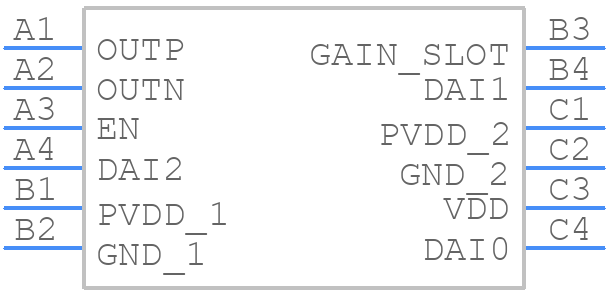

MAX98365AEWC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98365AEWC+T - Analog Devices PCB footprint - BGA - BGA - 12WLP
click to zoom
3D Models
MAX98365AEWC+T - Analog Devices - 3D model - BGA - 12WLP
click to zoom

MAX98365AEWC+T Details

  • Manufacturer Part Number:

    MAX98365AEWC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Package Description:

    WLP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2021-10-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    21.5 dB

  • JESD-30 Code:

    R-PBGA-B12

  • Length:

    1.778 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    14.7 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.208 mm

MAX98365AEWC+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX98365AEWC+T can be found in the MAX98365 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for layout design.
  • To optimize the performance of the MAX98365AEWC+T in a noisy environment, ensure proper power supply decoupling, use a low-ESR capacitor for the PVDD pin, and consider adding a ferrite bead or common-mode choke to the input lines. Additionally, use a shielded cable for the audio signal and keep the audio circuitry away from noisy components.
  • The maximum power handling capability of the MAX98365AEWC+T is dependent on the output impedance and the load impedance. According to the datasheet, the device can deliver up to 2.5W of power into a 4Ω load with a 5V supply. However, it's recommended to derate the power handling capability based on the specific application and thermal considerations.
  • To troubleshoot audio distortion or noise issues with the MAX98365AEWC+T, start by checking the power supply voltage and ensuring it's within the recommended range. Verify that the input signal is within the specified range and that the gain settings are correct. Use an oscilloscope to check for signal clipping or distortion, and ensure that the output filter components are properly selected and implemented.
  • The MAX98365AEWC+T is specified for operation over the commercial temperature range of 0°C to 70°C. However, Analog Devices offers other variants of the device that are qualified for automotive (-40°C to 105°C) or industrial (-40°C to 85°C) temperature ranges. Consult the datasheet or contact Analog Devices for more information on specific temperature range options.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX98365AEWC+T Overview

Use the download button to access the MAX98365AEWC+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX98, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
