MAX98365CEWC+T - Analog Devices

Description: Tiny, Cost-Effective, 14V Plug-and-Play Digital Class-D Amplifier

Download MAX98365CEWC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

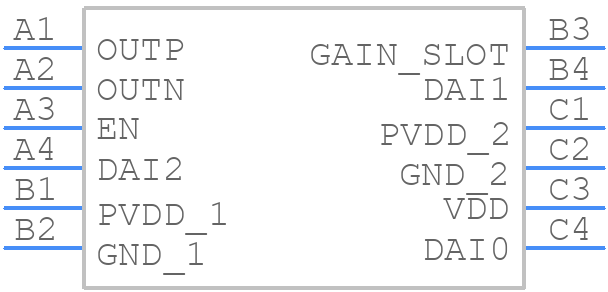

Symbol
MAX98365CEWC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98365CEWC+T - Analog Devices PCB footprint - BGA - BGA - 12WLP
click to zoom
3D Models
MAX98365CEWC+T - Analog Devices - 3D model - BGA - 12WLP
click to zoom

MAX98365CEWC+T Details

  • Manufacturer Part Number:

    MAX98365CEWC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Package Description:

    WLP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2021-10-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    21.5 dB

  • JESD-30 Code:

    R-PBGA-B12

  • Length:

    1.778 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    14.7 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.208 mm

MAX98365CEWC+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX98365CEWC+T is to keep the audio signal traces as short as possible, and to use a ground plane to minimize noise and electromagnetic interference (EMI). Additionally, it's recommended to place the device near the audio input and output connectors to minimize signal loss and noise pickup.
  • To optimize the performance of the MAX98365CEWC+T in a noisy environment, it's recommended to use a shielded enclosure, add noise filtering capacitors to the power supply lines, and use a common-mode choke to reduce electromagnetic interference (EMI). Additionally, consider using a differential audio input and output to reduce noise pickup.
  • The maximum power handling capability of the MAX98365CEWC+T is dependent on the output impedance and the supply voltage. According to the datasheet, the device can deliver up to 2.5W of power into a 4Ω load with a 5V supply voltage. However, it's recommended to derate the power handling capability based on the specific application and operating conditions.
  • The MAX98365CEWC+T has several configuration options, including gain settings, filter settings, and output impedance settings. To configure the device for a specific audio application, refer to the datasheet and application notes, and use the provided evaluation board and software tools to experiment with different settings and optimize the performance for the specific application.
  • The MAX98365CEWC+T has a thermal pad on the bottom of the package that should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, it's recommended to use a heat sink or thermal interface material to improve heat dissipation. The device has a maximum junction temperature of 150°C, and it's recommended to keep the operating temperature below 125°C to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX98365CEWC+T Overview

Use the download button to access the MAX98365CEWC+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX98, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
