MAX98388EWE+ - Analog Devices

Description: Digital Input Class-D Amplifier with IV Feedback and Brownout Protection

Download MAX98388EWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

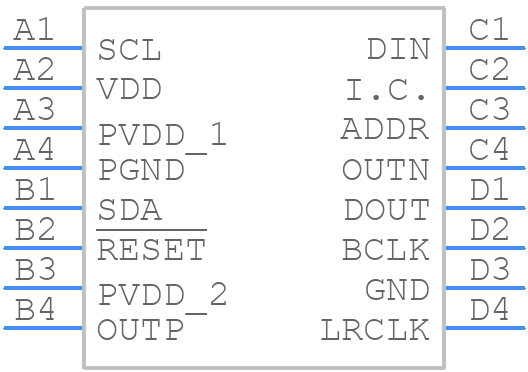

Symbol
MAX98388EWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98388EWE+ - Analog Devices PCB footprint - BGA - BGA - W161P1Z+1
click to zoom
3D Models
MAX98388EWE+ - Analog Devices - 3D model - BGA - W161P1Z+1
click to zoom

MAX98388EWE+ Details

  • Manufacturer Part Number:

    MAX98388EWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-WLCSP-N/A

  • Package Description:

    WLP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2023-03-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PBGA-B16

  • Length:

    2.93 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    9.1 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max:

    6.8 mA

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.93 mm

MAX98388EWE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX98388E+ is to keep the analog and digital grounds separate, and to use a solid ground plane for the analog section. Additionally, keep the audio signal traces as short as possible and away from digital signal traces.
  • To optimize the MAX98388E+ for low power consumption, set the BCLK frequency to the lowest possible value, use the lowest possible supply voltage, and disable the PLL when not in use. Additionally, use the shutdown mode when the device is not in use.
  • The maximum output power of the MAX98388E+ depends on the supply voltage and load impedance. For a 3.3V supply and 4Ω load, the output power is approximately 2.5W. For a 5V supply and 8Ω load, the output power is approximately 5W.
  • To configure the MAX98388E+ for I2S or TDM mode, set the appropriate bits in the control registers. For I2S mode, set the I2S_EN bit and configure the I2S/TDM pin as an output. For TDM mode, set the TDM_EN bit and configure the I2S/TDM pin as an input.
  • The recommended clock frequency for the MAX98388E+ is between 10MHz and 50MHz. However, the device can operate with clock frequencies up to 100MHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX98388EWE+ Overview

Use the download button to access the MAX98388EWE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX98, or try a keyword search, such as Audio/Video Amplifiers
