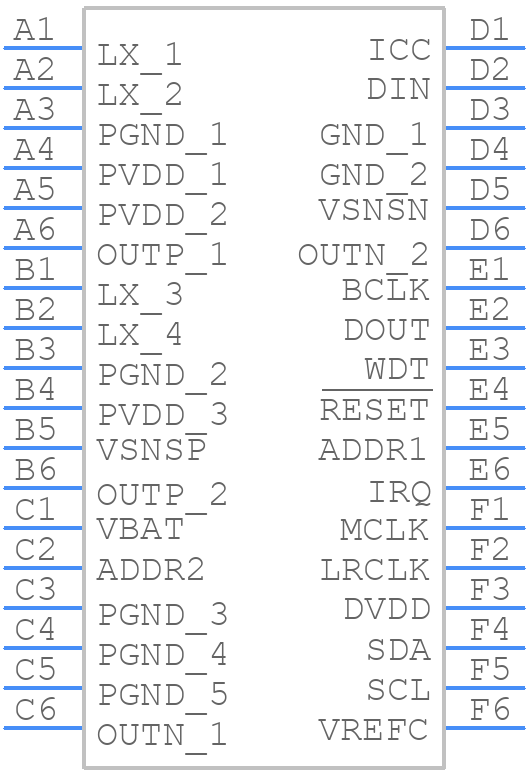

MAX98390EWX+T - Analog Devices

MAX98390EWX+T Details

• Manufacturer Part Number:

  MAX98390EWX+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Part Package Code:

  36-WLCSP-N/A

• Package Description:

  WLP-36

• Pin Count:

  36

• Manufacturer Package Code:

  36-WLCSP-N/A

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2019-06-03

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0.4

• Bandwidth-Nom:

  20 kHz

• Consumer IC Type:

  CLASS D AUDIO AMPLIFIER

• JESD-30 Code:

  R-PBGA-B36

• Length:

  2.608 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  36

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Power-Nom:

  6.2 W

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA36,6X6,16

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.69 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  2.65 V

• Surface Mount:

  YES

• Terminal Finish:

  Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2.418 mm
