MAX98396EWB+T - Analog Devices

Description: 20V Digital Input Class-DG Amplifier with I/V Sense and Brownout Prevention

Download MAX98396EWB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

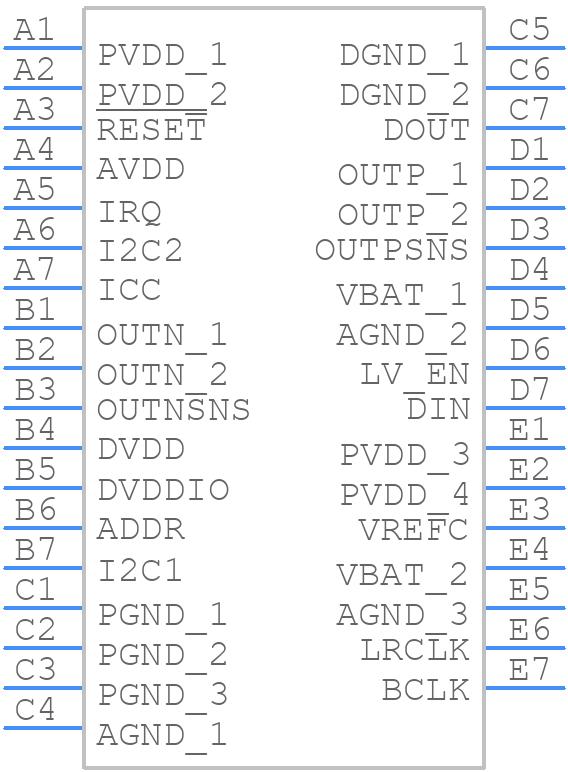

MAX98396EWB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98396EWB+T - Analog Devices PCB footprint - BGA - BGA - W352F3Z+1
click to zoom
3D Models
MAX98396EWB+T - Analog Devices - 3D model - BGA - W352F3Z+1
click to zoom

MAX98396EWB+T Details

  • Manufacturer Part Number:

    MAX98396EWB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    35-WLCSP-N/A

  • Package Description:

    WLP-35

  • Pin Count:

    35

  • Manufacturer Package Code:

    35-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2021-03-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PBGA-B35

  • Length:

    2.998 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    25 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA35,5X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.168 mm

MAX98396EWB+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for optimal performance. Ensure that the audio signal traces are short and away from noise sources, and that the power supply decoupling capacitors are placed close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the MAX98396 evaluation board layout as a reference.
  • To optimize for low power consumption, ensure that the device is operated at the lowest possible supply voltage (1.8V), and that the clock frequency is set to the minimum required for the application. Additionally, use the device's built-in power-saving features such as automatic gain control and dynamic bias adjustment. Refer to the datasheet for more information on power-saving modes.
  • The recommended clock source for the MAX98396 is a high-quality, low-jitter clock source such as a crystal oscillator or a high-precision clock generator. A clock frequency of 12.288MHz or 24.576MHz is recommended for optimal performance. Avoid using the internal clock generator if possible, as it may introduce jitter and affect audio quality.
  • To troubleshoot audio quality issues, first ensure that the device is properly configured and that the audio signal is being driven correctly. Check for noise sources such as electromagnetic interference (EMI) or radio-frequency interference (RFI) that may be affecting audio quality. Use an oscilloscope or audio analyzer to measure the audio signal and identify any distortions or anomalies. Refer to the datasheet and application notes for more troubleshooting tips.
  • Yes, the MAX98396 is suitable for battery-powered applications due to its low power consumption. However, ensure that the device is operated at the lowest possible supply voltage (1.8V) and that power-saving features are enabled to minimize power consumption. Additionally, consider using a low-dropout regulator (LDO) to regulate the supply voltage and minimize power consumption.
