MC100EP11DG - onsemi

Description: 3.3V / 5V ECL 1:2 Differential Fanout Buffer

Download MC100EP11DG Model

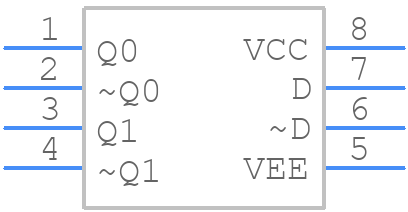

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC100EP11DG - onsemi PCB footprint - Other - Other - SOIC127P600X175-8N
click to zoom
3D Models
MC100EP11DG - onsemi  - 3D model - Other - SOIC127P600X175-8N
click to zoom

MC100EP11DG Details

  • Manufacturer Part Number:

    MC100EP11DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    NECL MODE: VCC=0 WITH VEE = -3.0V TO -5.5V

  • Family:

    10EP

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.32 ns

  • Propagation Delay (tpd):

    0.3 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.12 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC100EP11DG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC100EP11DG is 3.3V ± 10%.
  • To ensure signal integrity, use a 50-ohm transmission line, maintain a consistent impedance, and use termination resistors at the receiver end.
  • The MC100EP11DG supports data rates up to 3.2 Gbps.
  • Power sequencing is not critical for the MC100EP11DG, but it's recommended to power up the VCC pin before the input signals.
  • The typical power consumption of the MC100EP11DG is around 150 mW at 3.3V and 1.5 Gbps.
